Ignition System Component Locations
Ignition System Component Locations

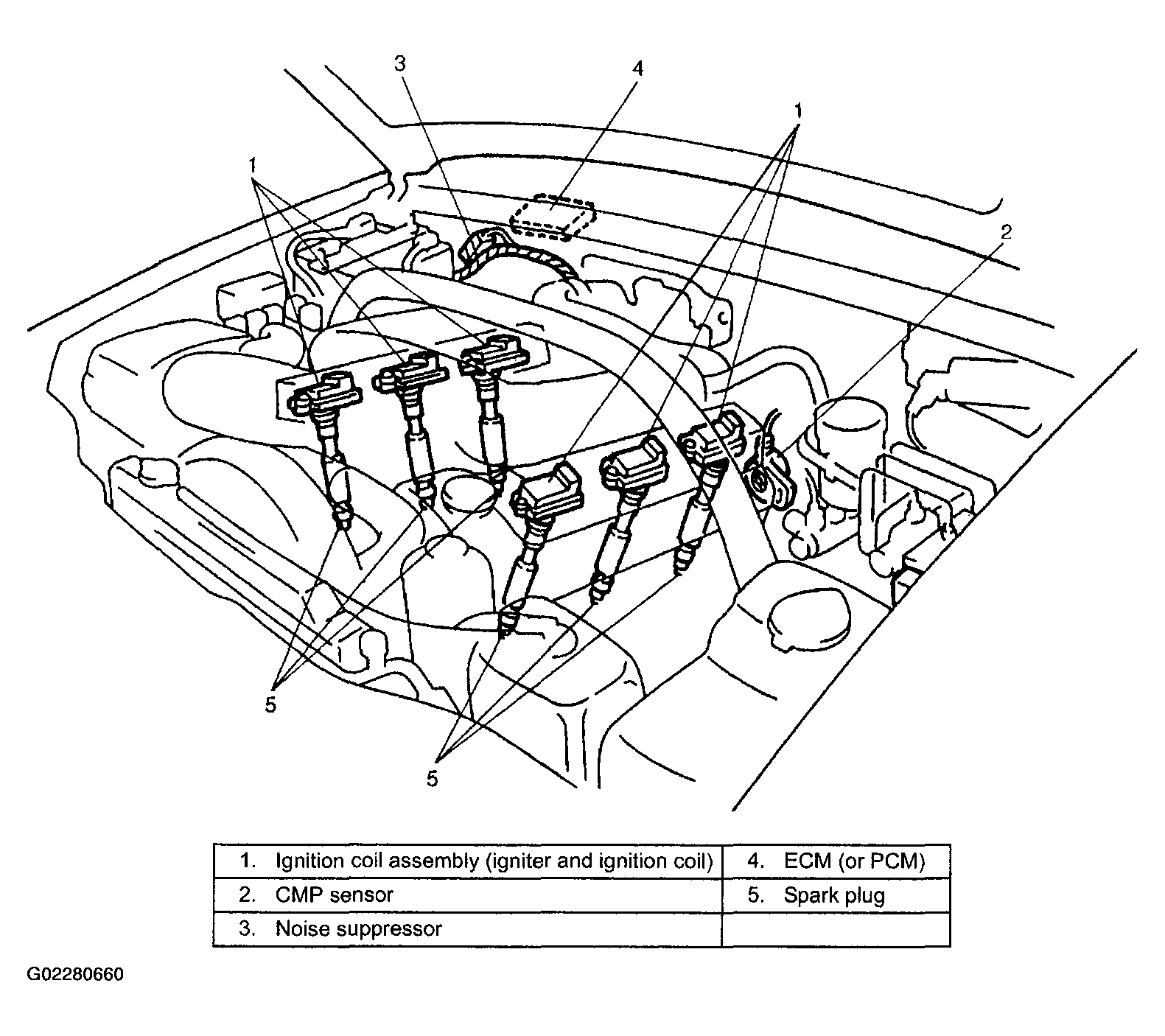

Fig 1: Locating Ignition System Components
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
