Ignition System Check
›
Notes
Ignition System Check: Notes

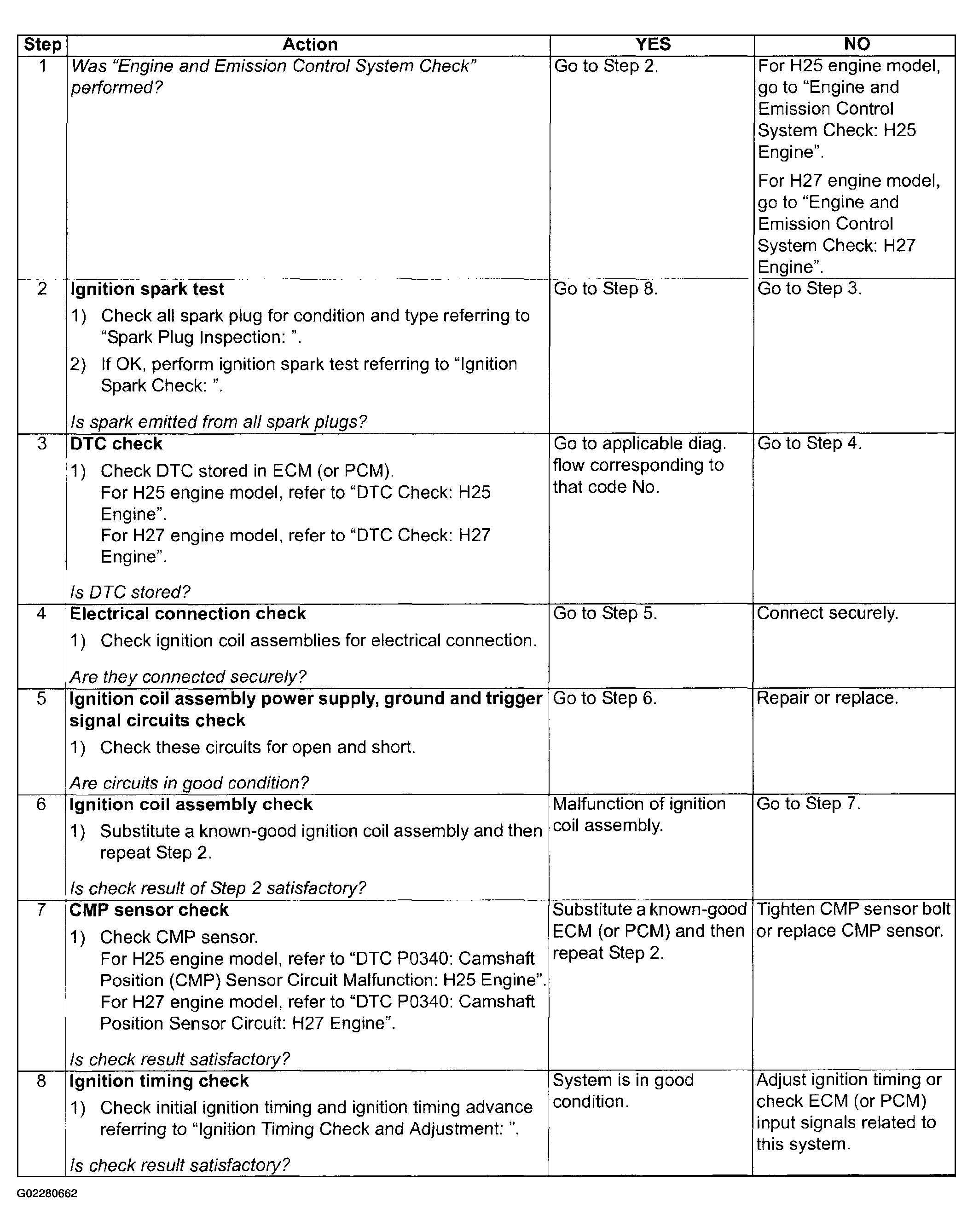

Fig 1: Ignition System Check Chart
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
