Oil Pump Components
Oil Pump Components

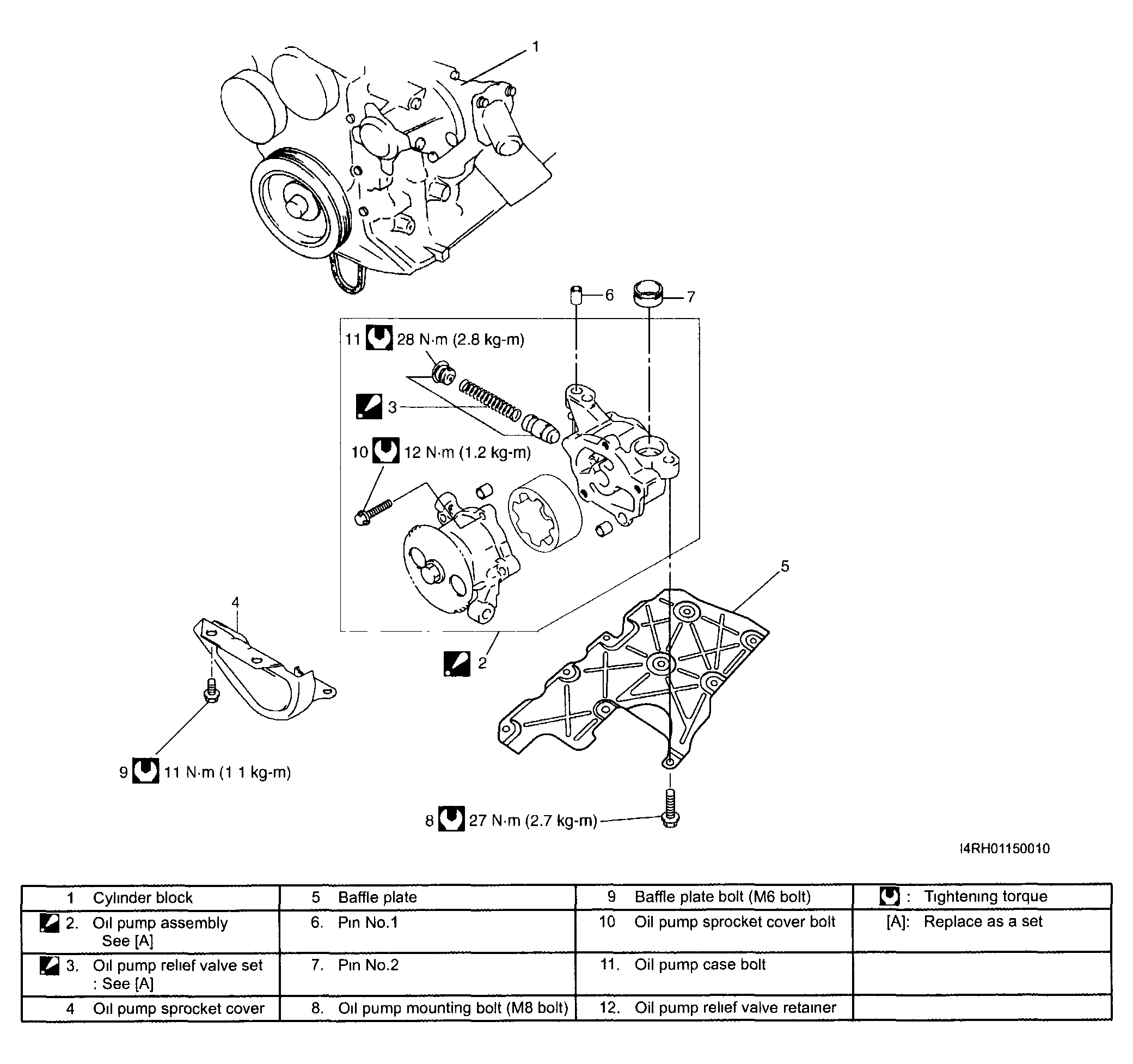

Fig 1: Identifying Oil Pump Components
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
