Electric Load Signal Circuit Check
›
Wiring Diagram
Electric Load Signal Circuit Check: Wiring Diagram

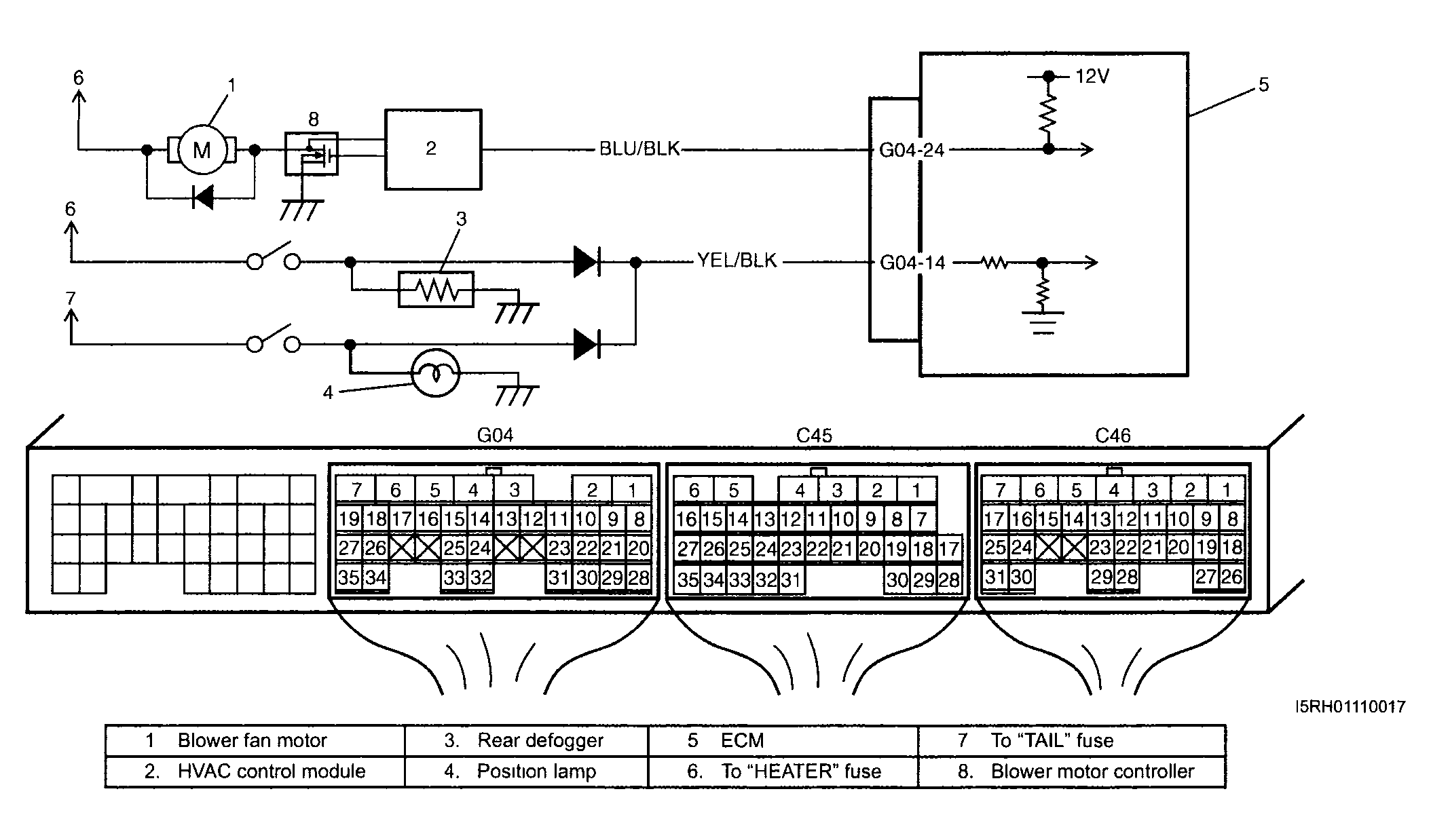

Fig 1: Electric Load Signal Circuit - Wiring Diagram
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
