Fuel Pump Circuit Check: Wiring Diagram

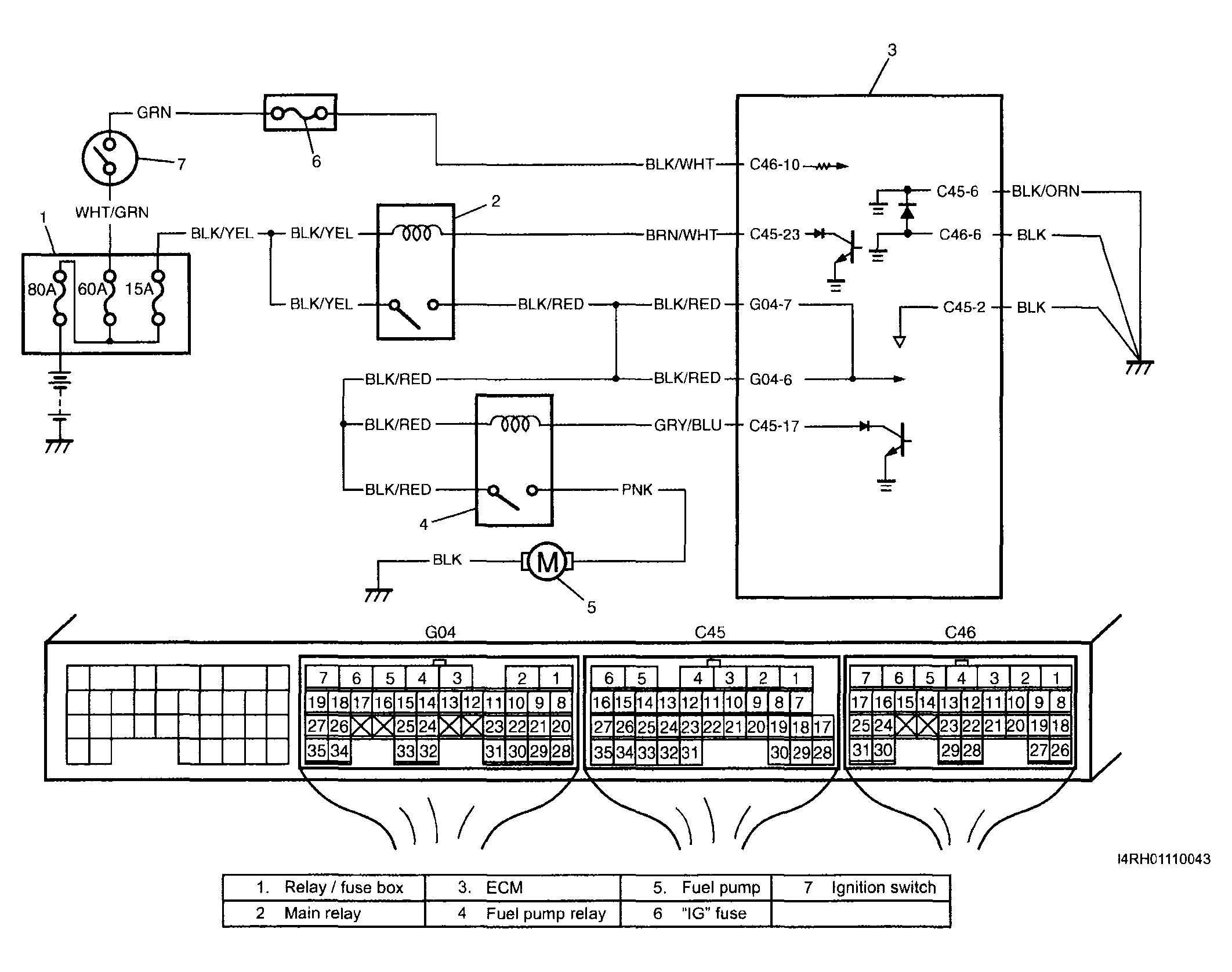

Fig 1: Fuel Pump Circuit - Wiring Diagram
G04013810Courtesy of SUZUKI OF AMERICA CORP.
