Radiator Fan Control System Check: Wiring Diagram

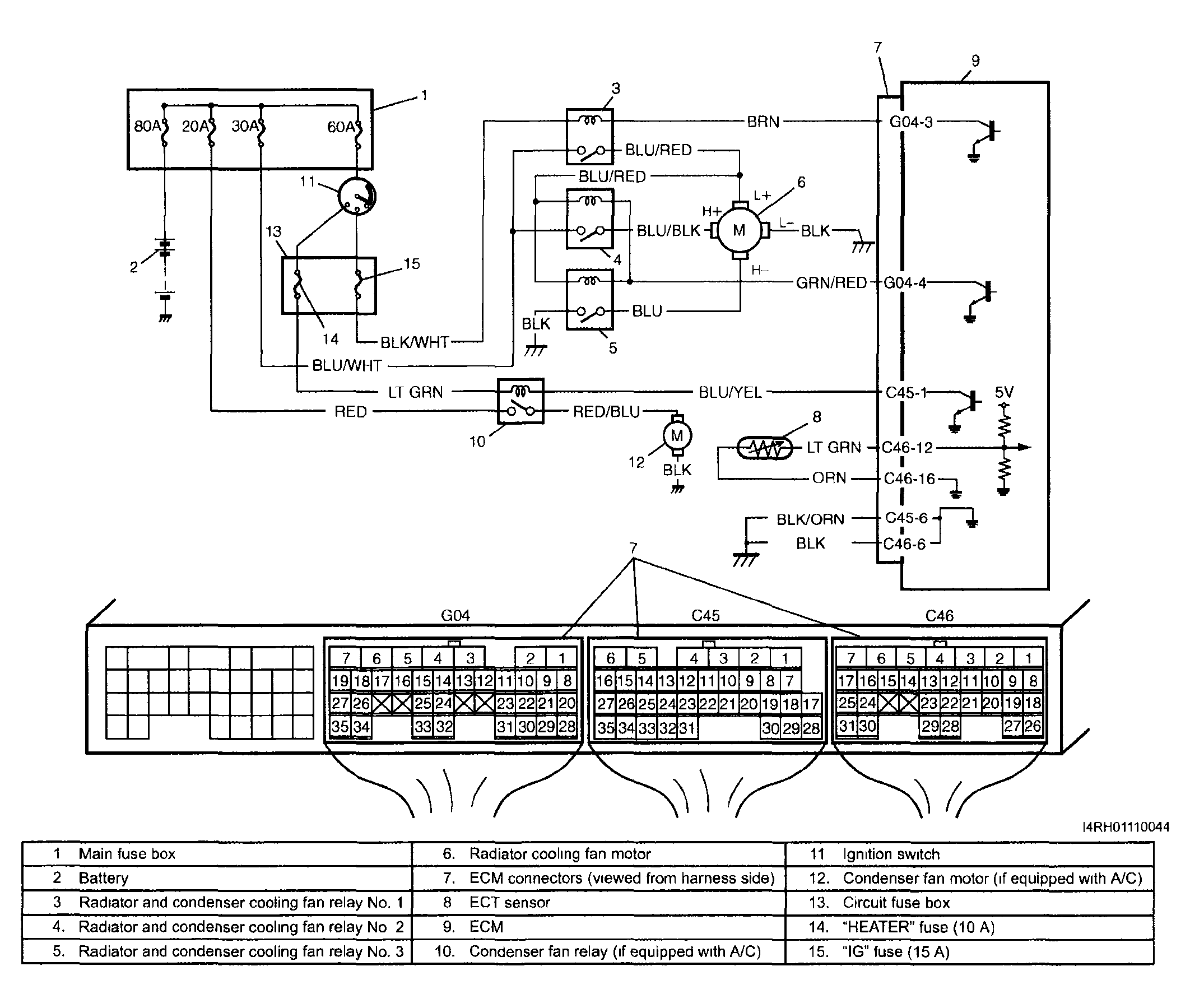

Fig 1: Radiator Fan Control - Wiring Diagram
G04013814Courtesy of SUZUKI OF AMERICA CORP.
