Fuel Pump Assembly Components
Fuel Pump Assembly Components

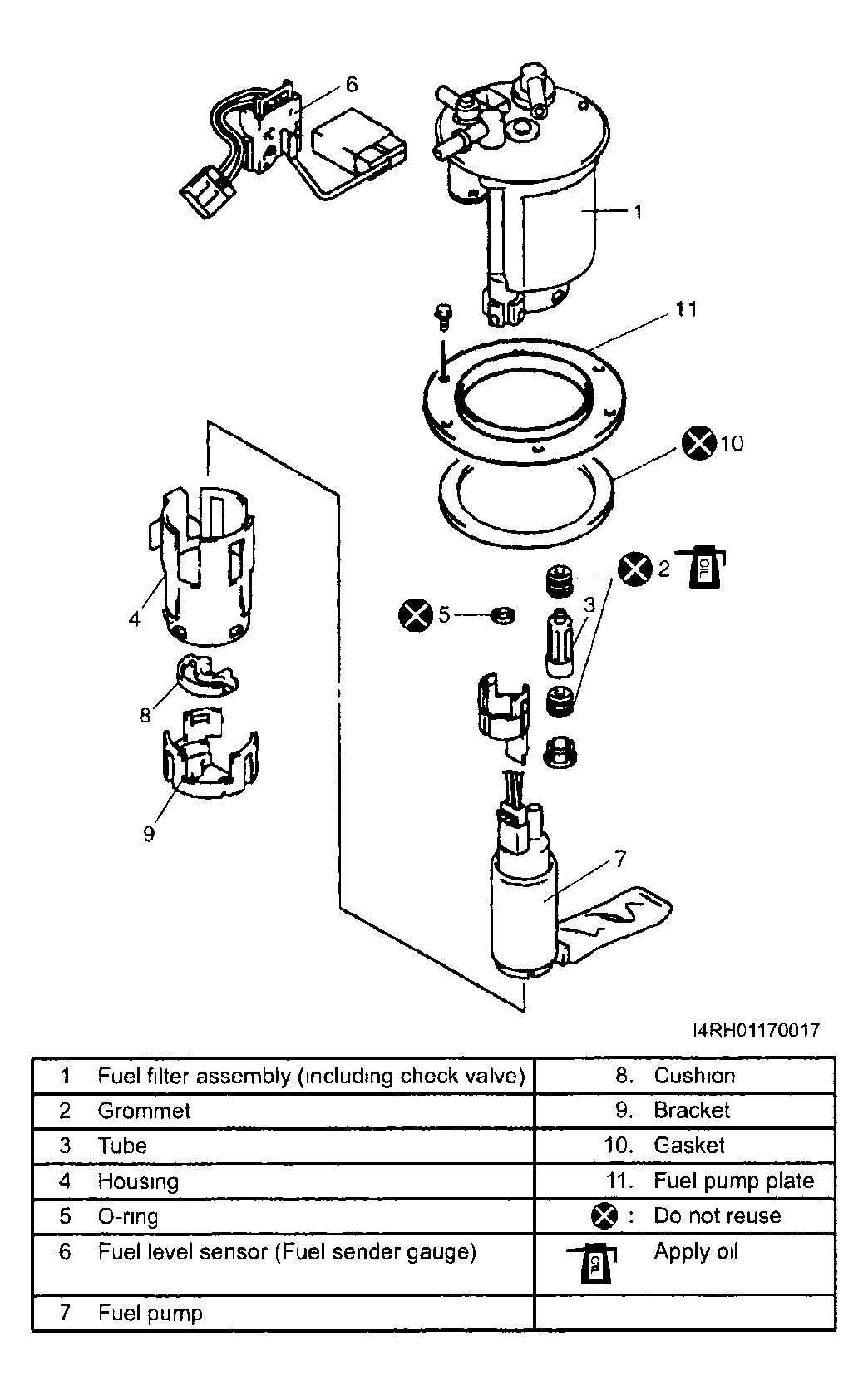

Fig 1: Identifying Fuel Pump Assembly Components
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
