A/C Condenser Fan Control System Inspection: Wiring Diagram

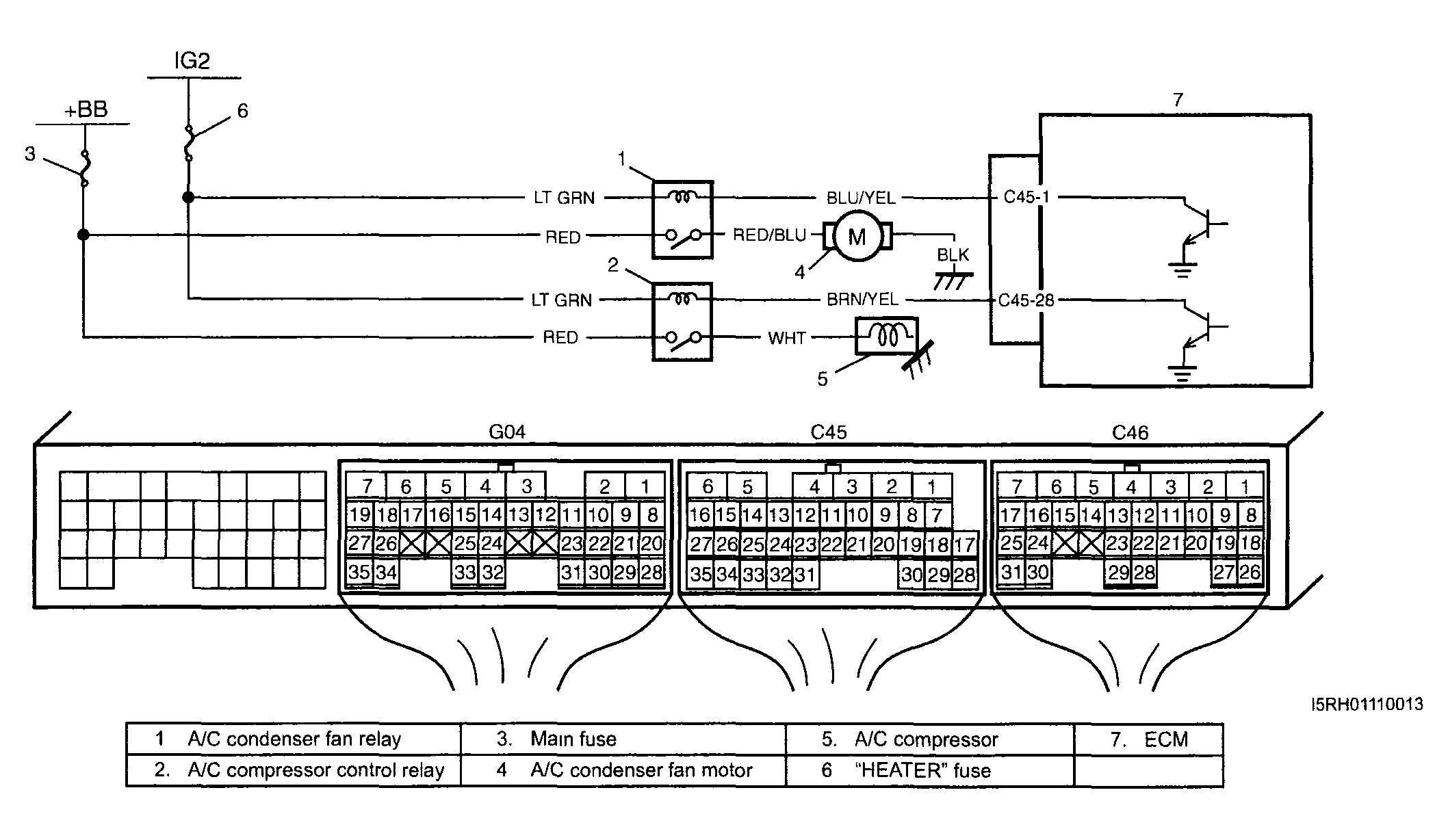

Fig 1: A/C Condenser Fan Control - Wiring Diagram
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
