Section 1 (Transfer)
›
Repair Instructions
›
Transfer Assembly Components
Transfer Assembly Components
WARNING:
This page is about a different variant/trim than selected.

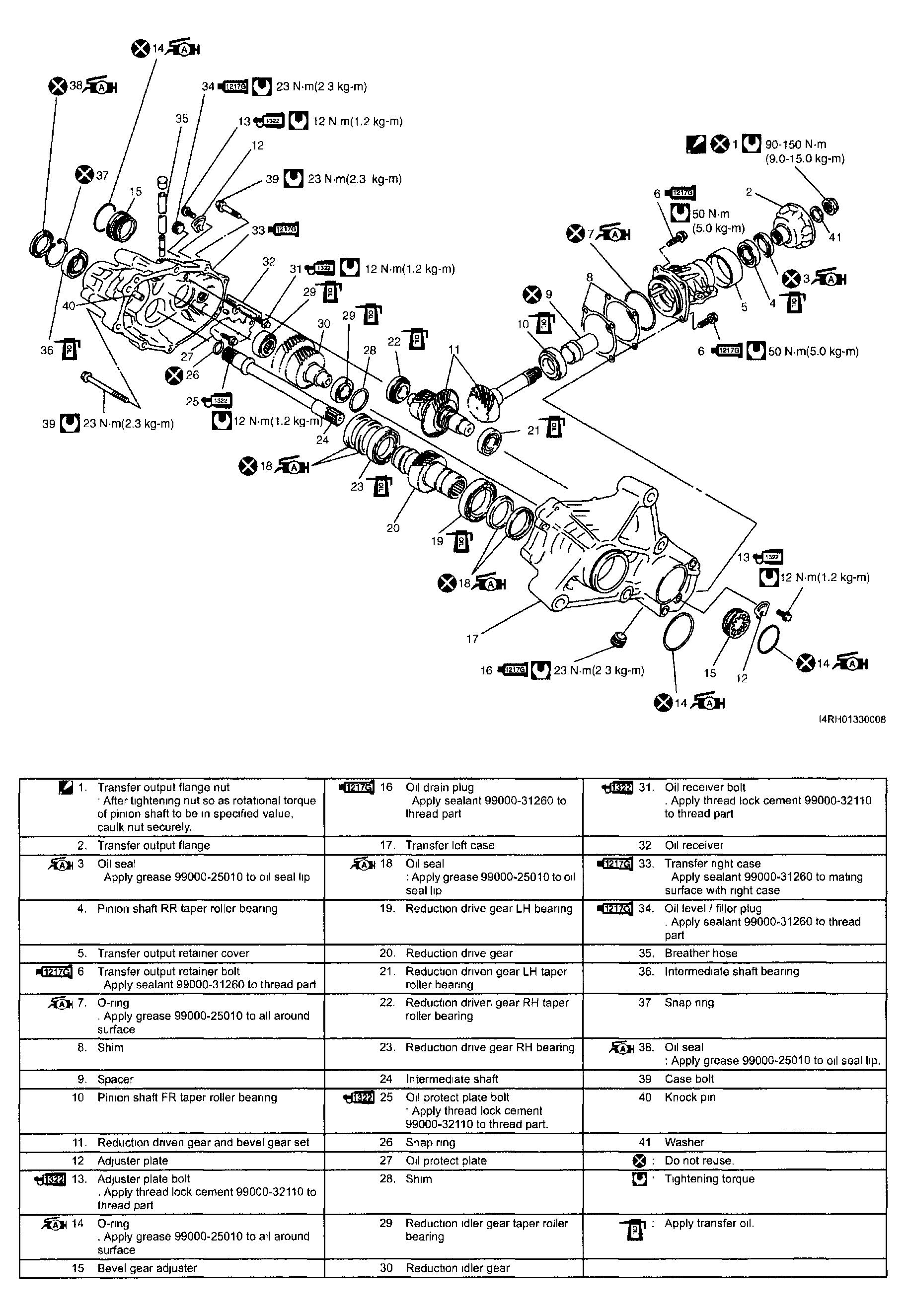

Fig 1: Identifying Transfer Assembly Components
Courtesy of SUZUKI OF AMERICA CORP.
