DTC P0463: Fuel Level Sensor Circuit High Input
›
Wiring Diagram
DTC P0463: Fuel Level Sensor Circuit High Input: Wiring Diagram

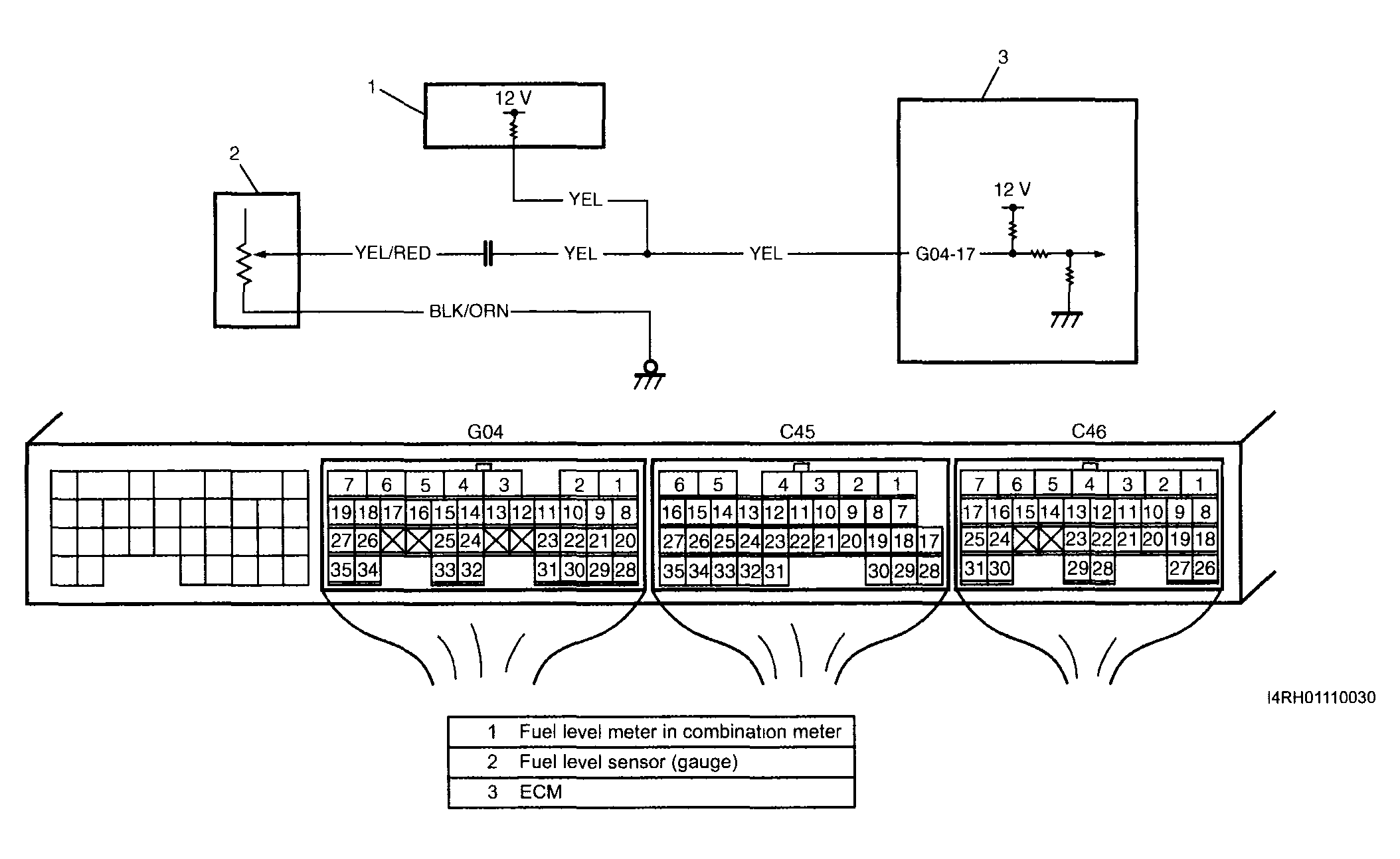

Fig 1: Fuel Level Sensor Circuit High Input - Wiring Diagram (DTC P0463)
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
