Automatic Transaxle Assembly Components

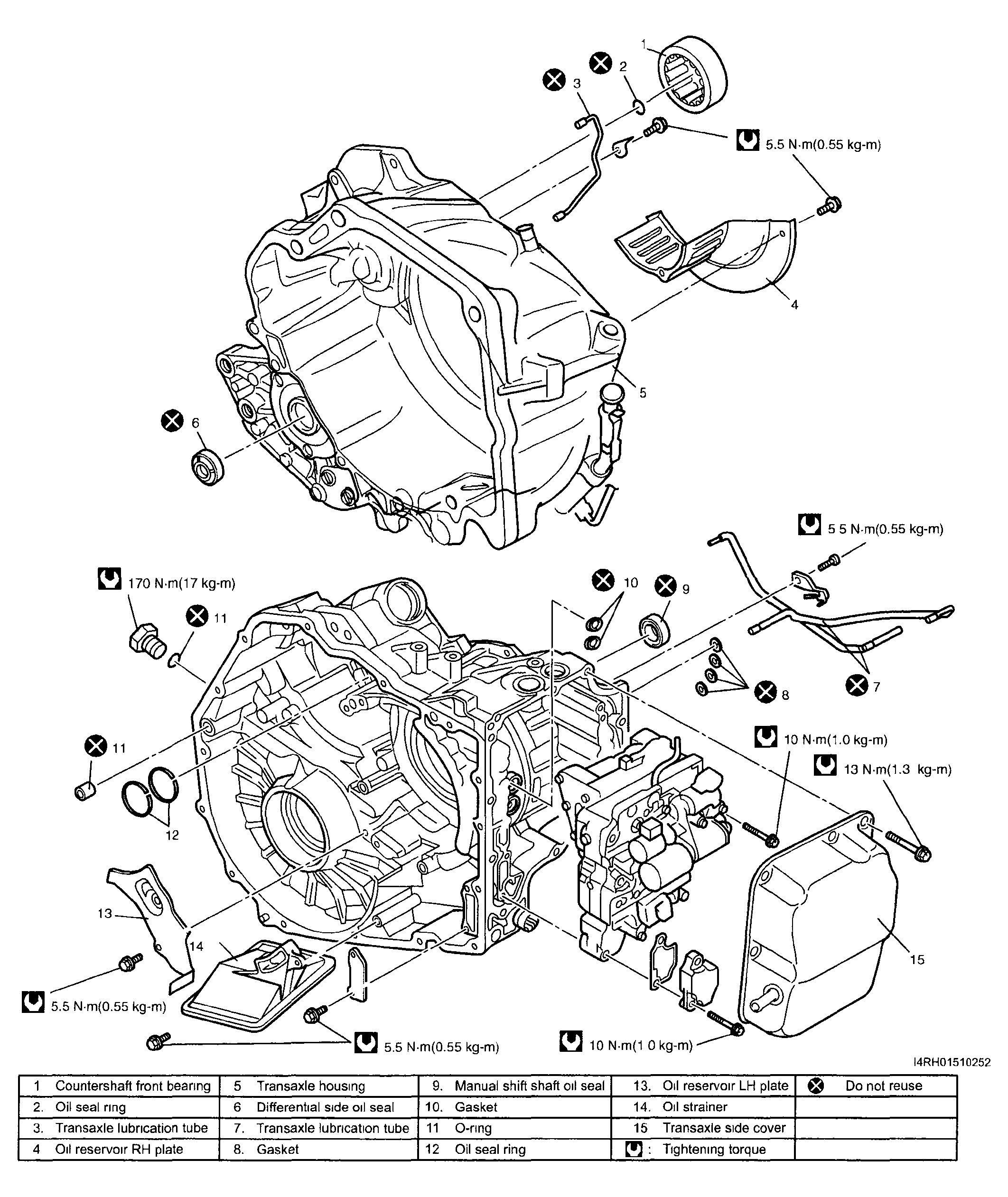

Fig 1: Exploded View Of Automatic Transaxle Assembly Components (1 Of 3)

Courtesy of SUZUKI OF AMERICA CORP.

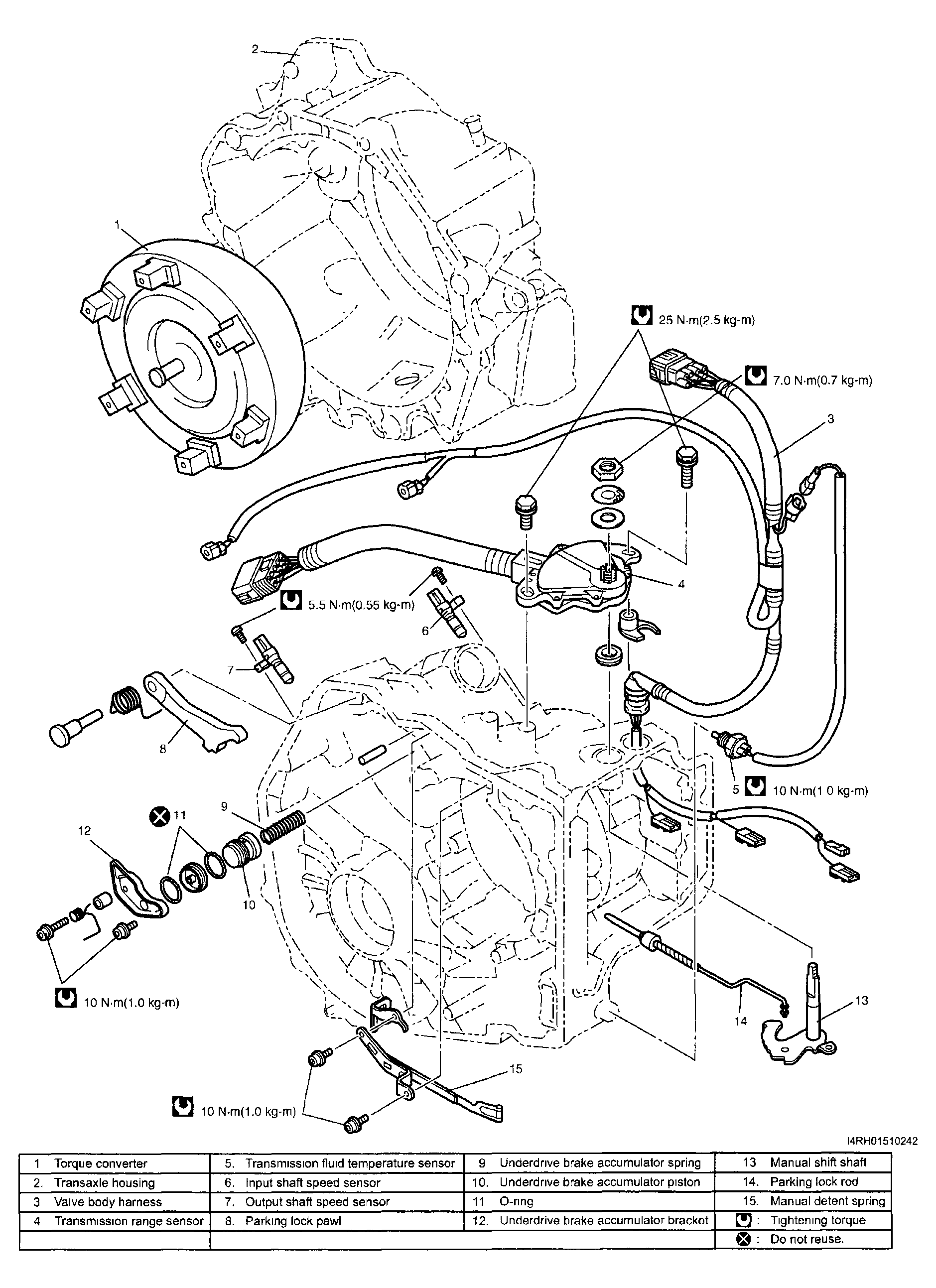

Fig 2: Exploded View Of Automatic Transaxle Assembly Components (2 Of 3)

Courtesy of SUZUKI OF AMERICA CORP.

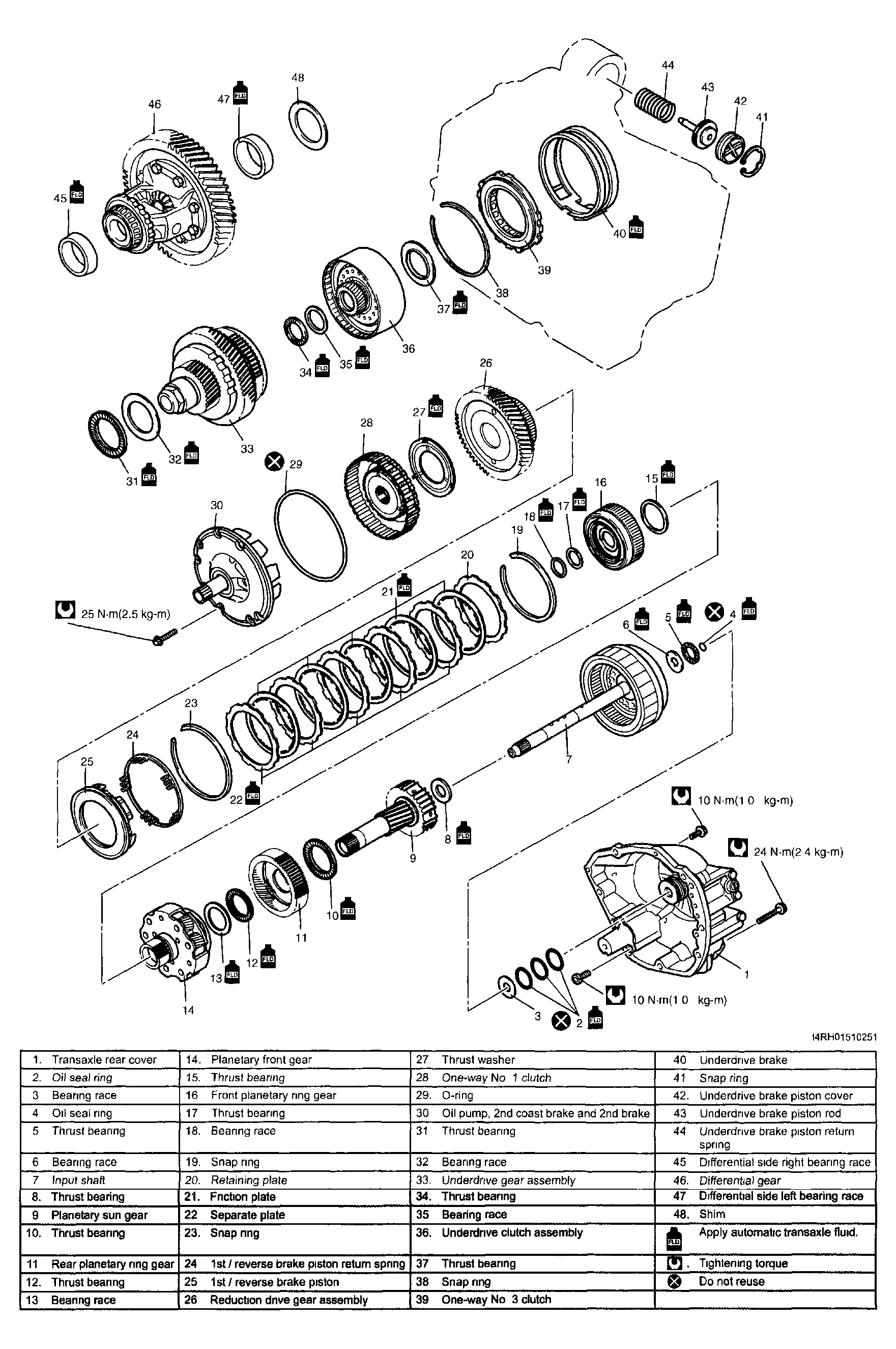

Fig 3: Exploded View Of Automatic Transaxle Assembly Components (3 Of 3)

Courtesy of SUZUKI OF AMERICA CORP.
