Select Cable Components
Select Cable Components

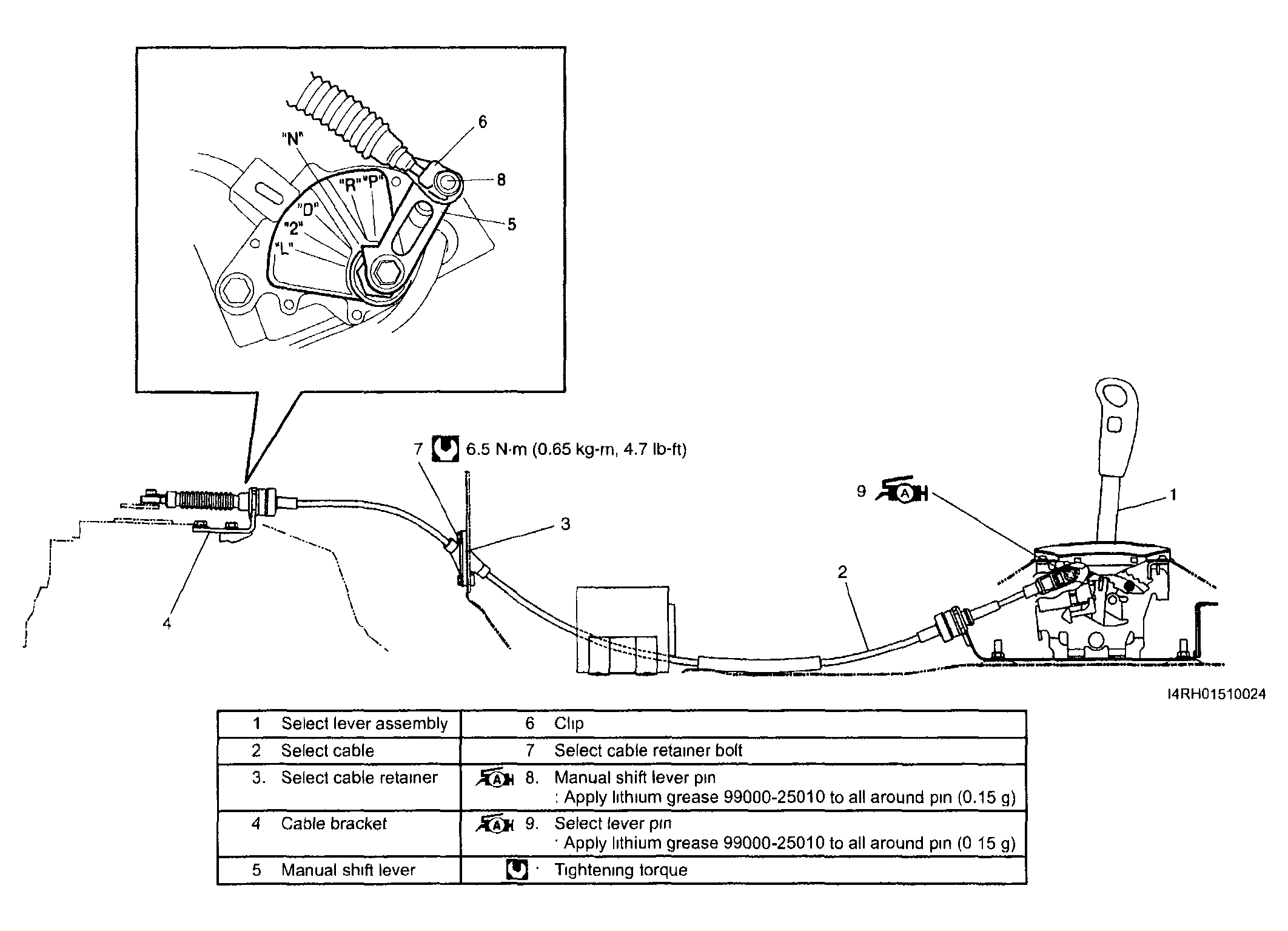

Fig 1: Identifying Select Cable Components
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
