Select Lever Components
Select Lever Components

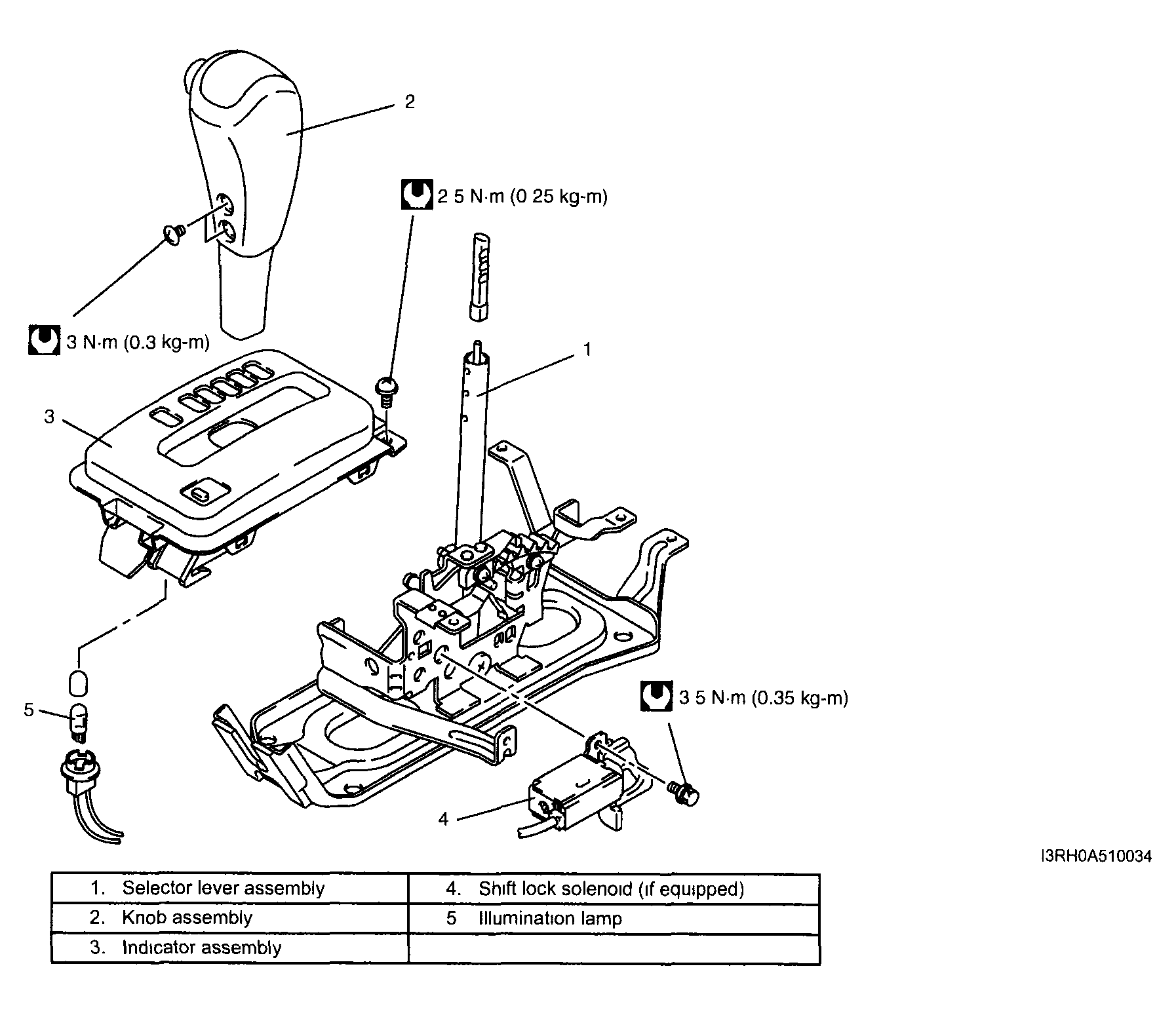

Fig 1: Identifying Select Lever Components
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
