Transmission Control Module (TCM) Wiring Diagram
›
Notes
Transmission Control Module (TCM) Wiring Diagram: Notes

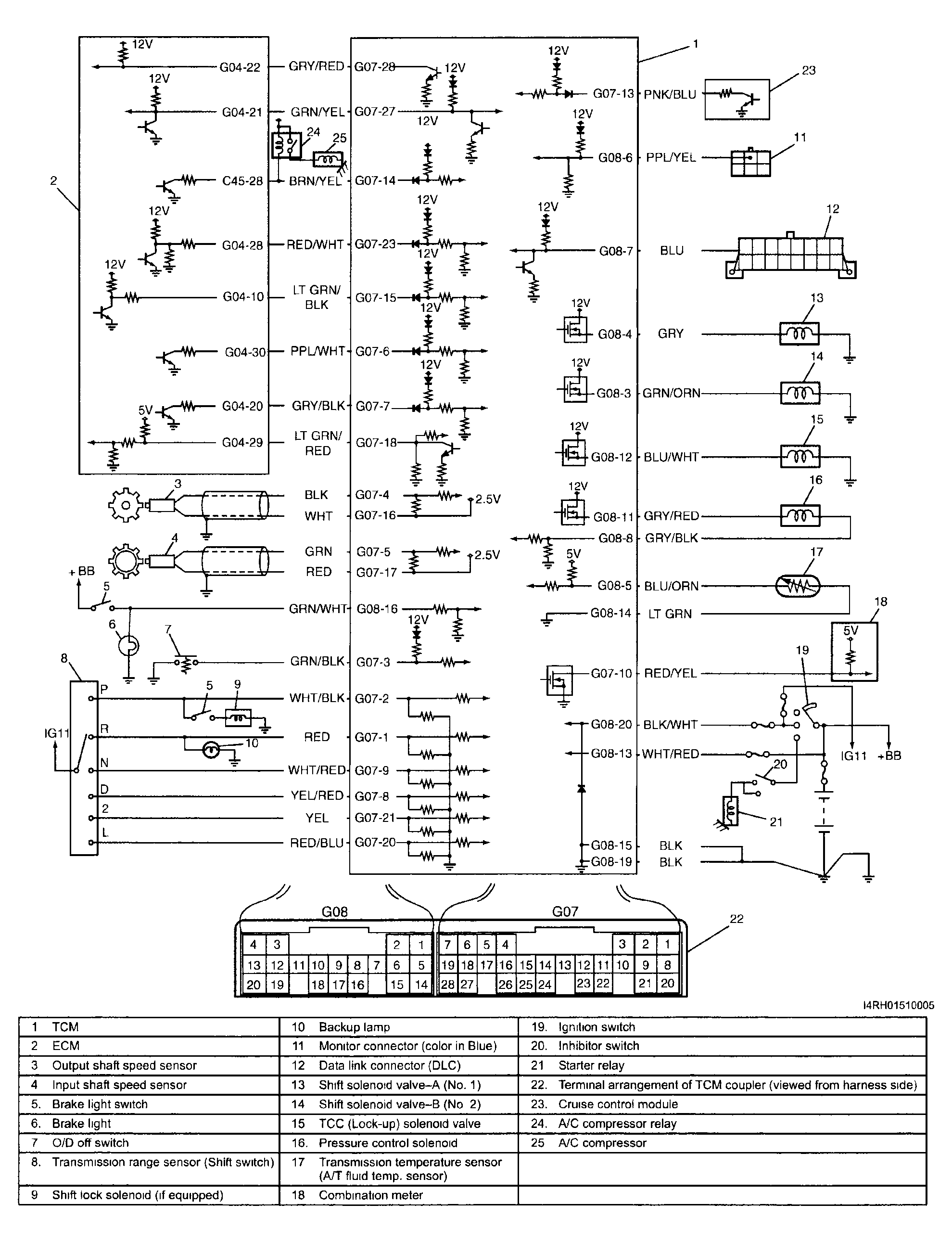

Fig 1: Transmission Control Module (TCM) Wiring Diagram
Courtesy of SUZUKI OF AMERICA CORP.
