DTC P0133 Oxygen Sensor 1 (O2S1) Slow Response: Notes

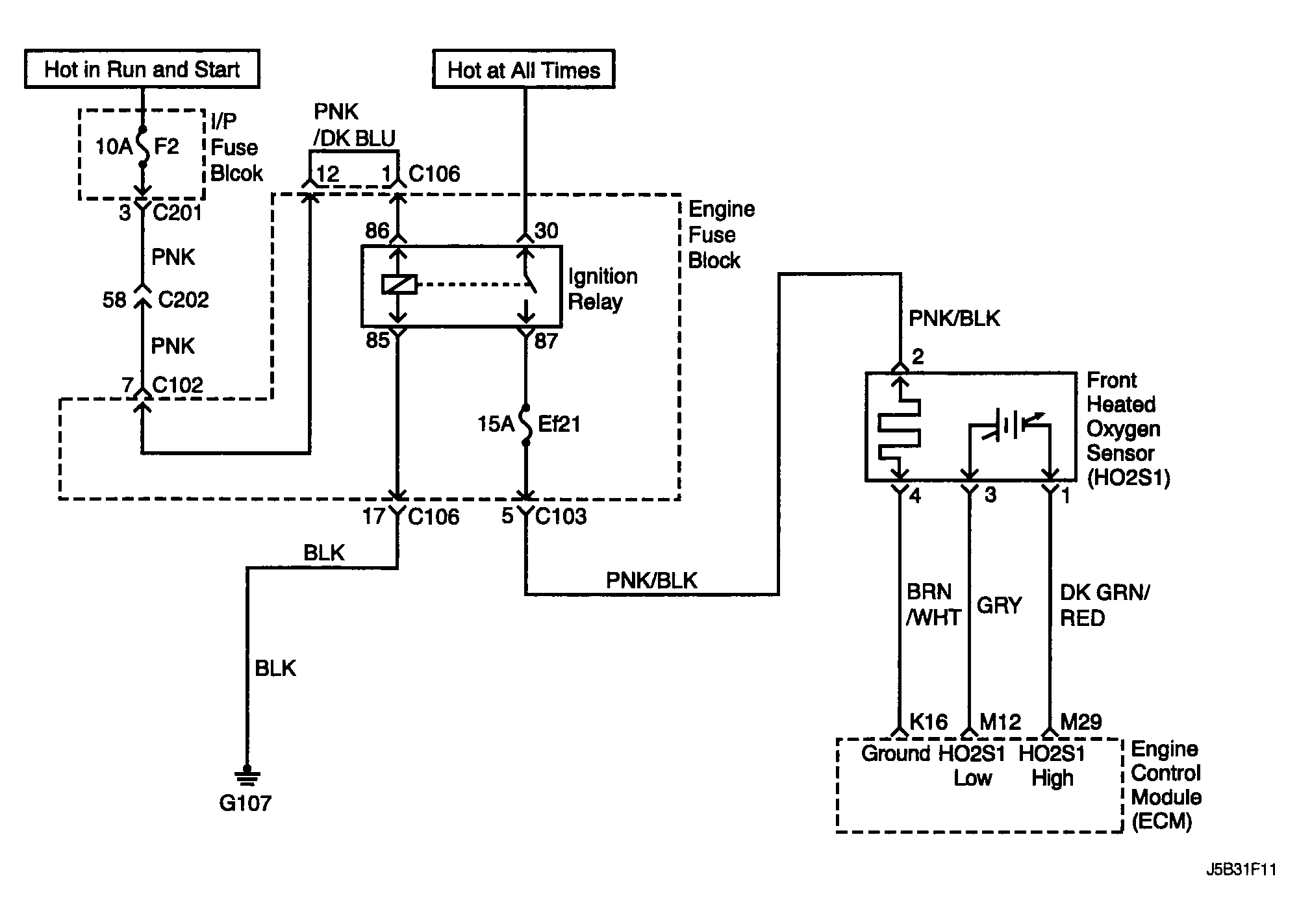

Fig 1: Oxygen Sensor 1 (O2S1) Slow Response - Circuit Diagram
G04102532Courtesy of SUZUKI OF AMERICA CORP.
