DTC P0327 Knock Sensor Circuit Fault
›
Notes
DTC P0327 Knock Sensor Circuit Fault: Notes

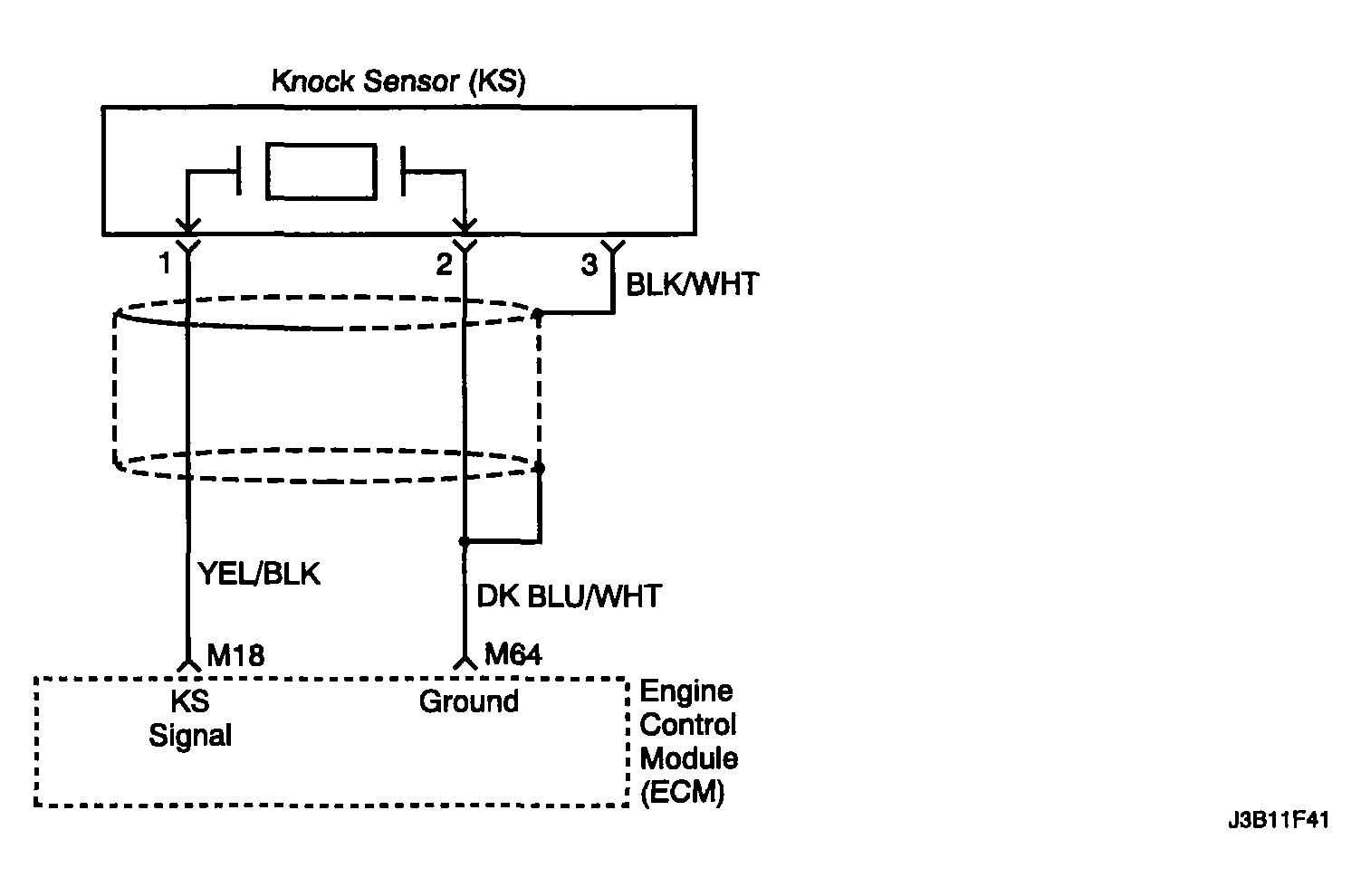

Fig 1: Knock Sensor Circuit Fault - Circuit Diagram
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
