Fuel Pump Relay Circuit Check: Notes

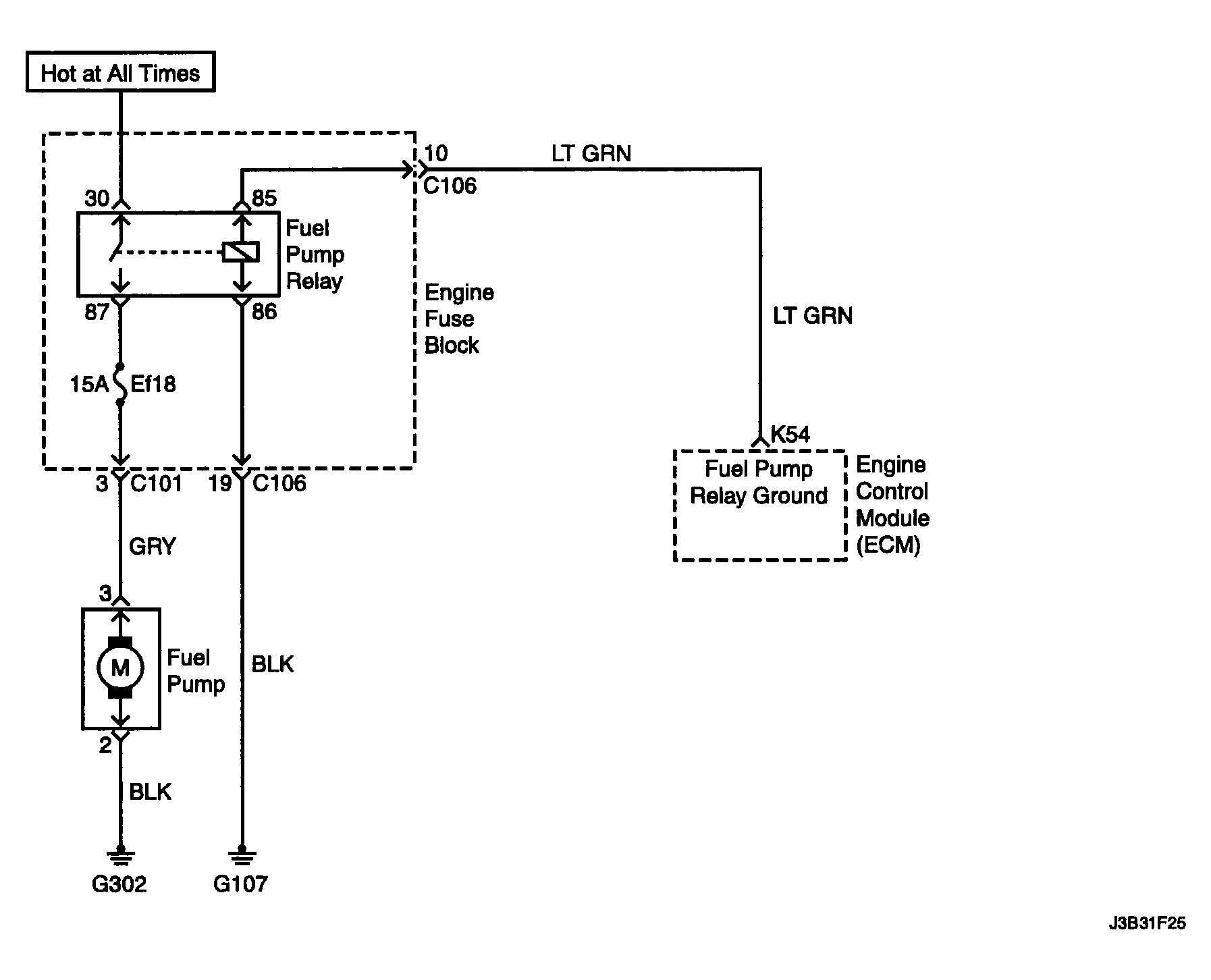

Fig 1: Fuel Pump Relay - Circuit Diagram
G04102588Courtesy of SUZUKI OF AMERICA CORP.
