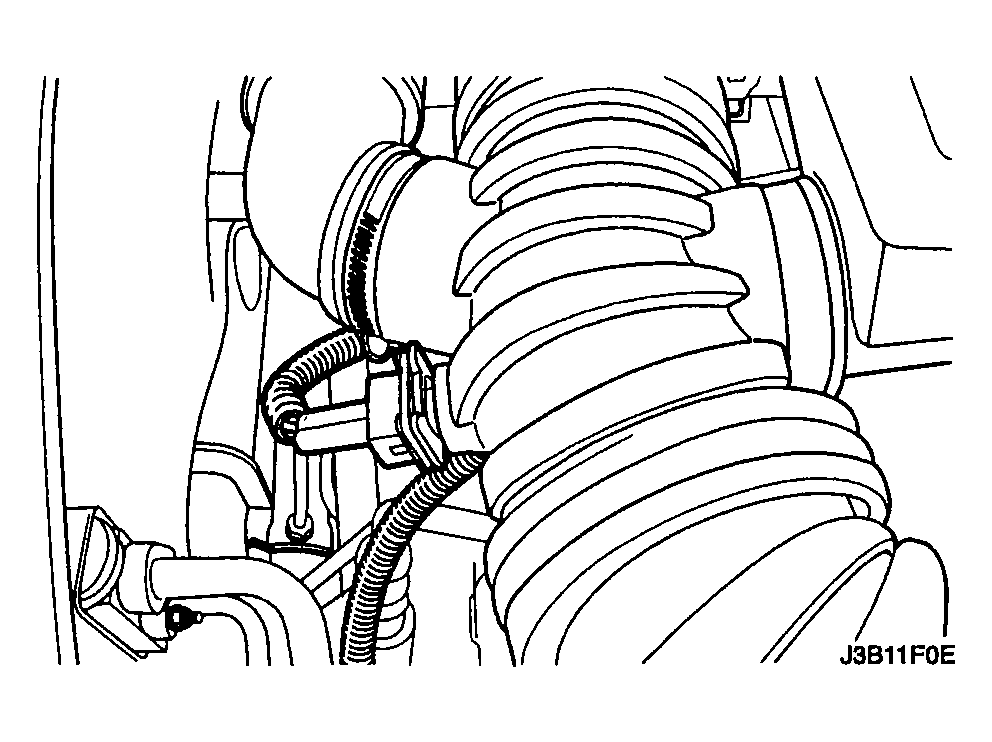

Intake Air Temperature Sensor Removal and Installation: Removal
- Disconnect the negative battery cable.
- Disconnect the intake air temperature (IAT) sensor connector.
- Remove the IAT sensor by pulling it out of the air intake tube.
Courtesy of SUZUKI OF AMERICA CORP.
