DTC P0606 Transaxle Control Module Processor Fault
›
Notes
DTC P0606 Transaxle Control Module Processor Fault: Notes

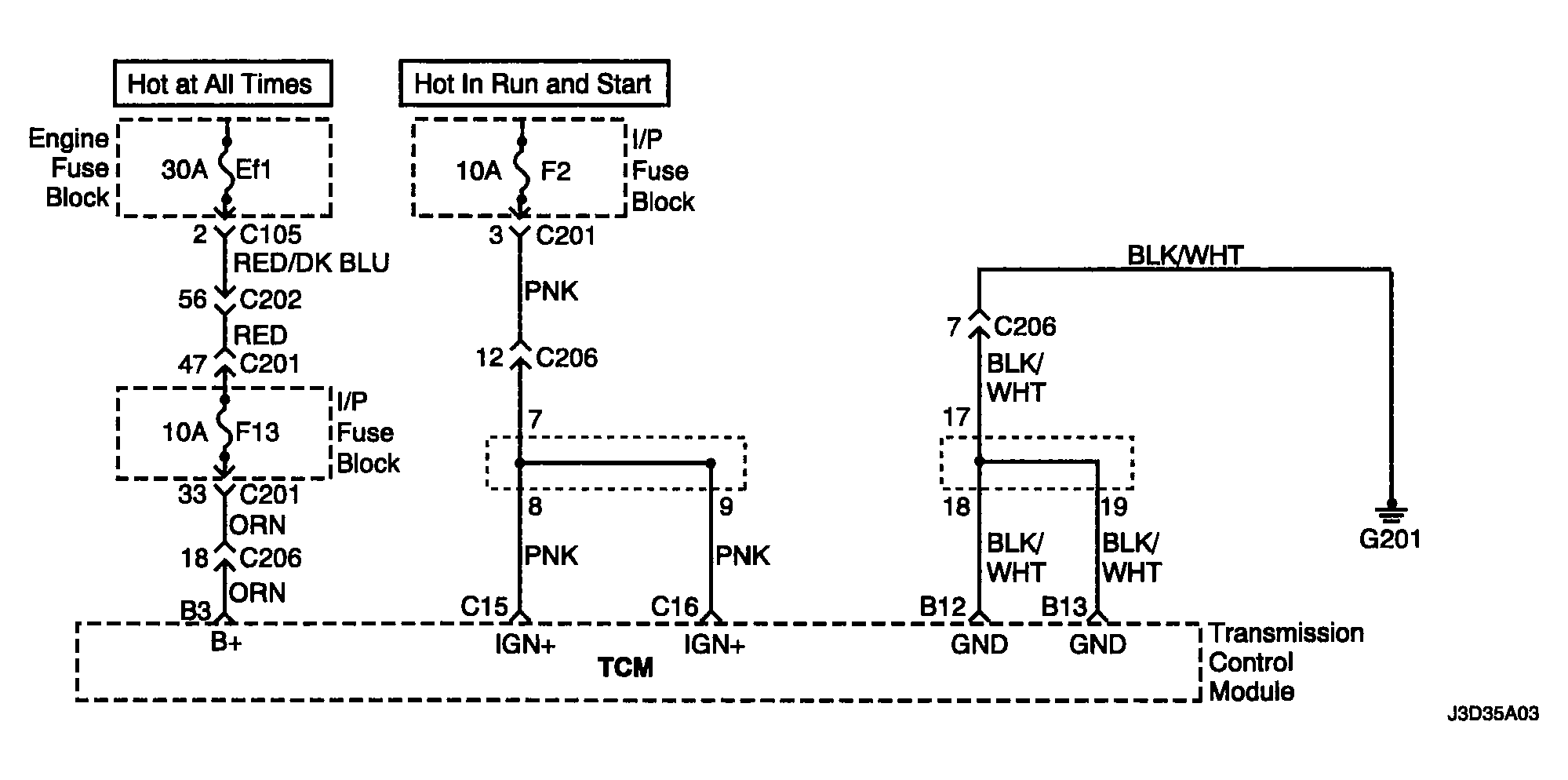

Fig 1: DTC P0606 Transaxle Control Module Processor Fault Circuit
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
