Automatic Transmission
›
General Description
›
Electronic Components Description
›
Signal Combination
Signal Combination
SIGNAL COMBINATION
L1
L2
L3
L4
P
0
0
12
0
R
0
0
0
12
N
0
12
0
0
D
12
12
12
0
3
12
12
0
12
2
12
0
12
12
1
0
12
12
12

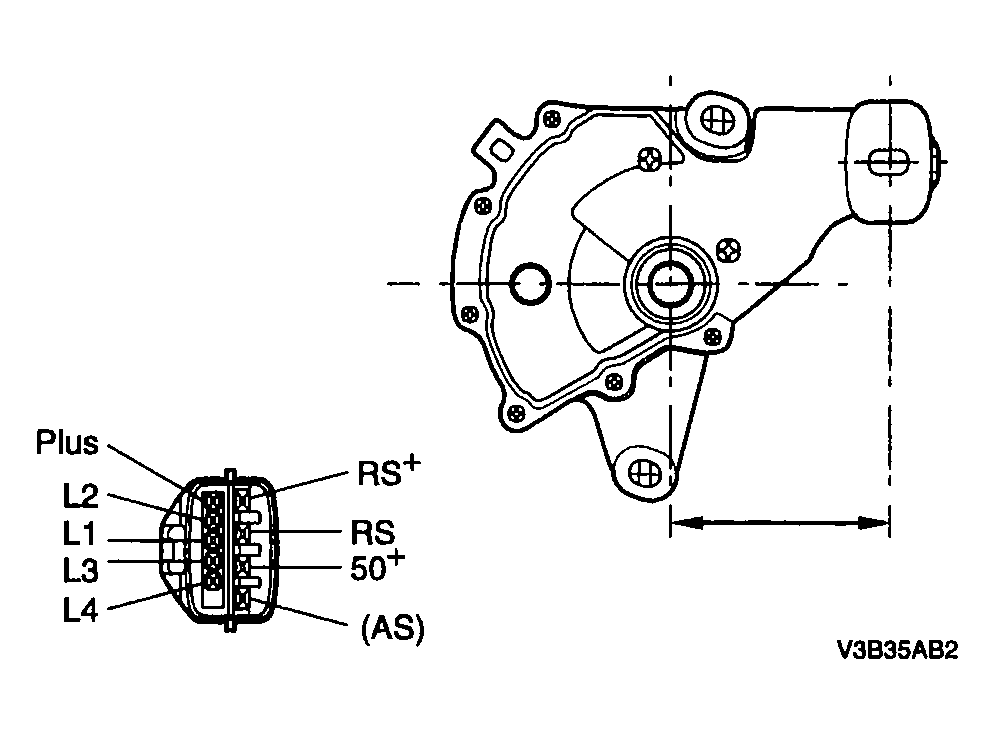

Fig 1: Identifying Park Neutral Position Switch Connector Terminals
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
