Body & Frame
›
Door Locks
›
Security And Locks
›
Schematic and Routing Diagram
›
Control Module/Receiver Connector
Control Module/Receiver Connector

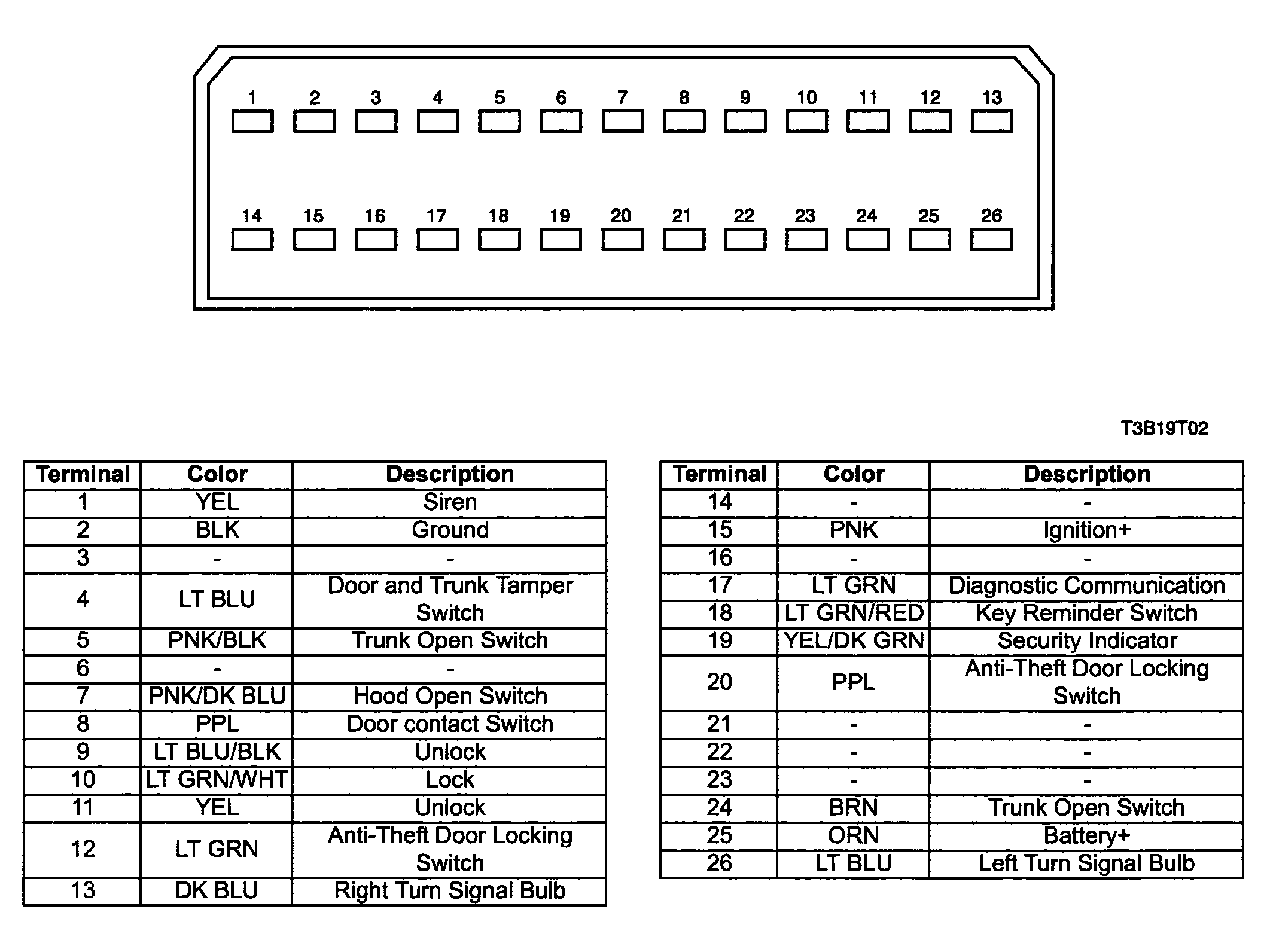

Fig 1: Identifying Control Module/Receiver Connector
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
