Instrument Panel Fuse Block

NOTE: Instrument panel fuse block is located on the driver side of the I/P, in the door opening. See Fig 1.
Fig 1: Locating Instrument Panel Fuse Block
G00330685Courtesy of GENERAL MOTORS CORP.

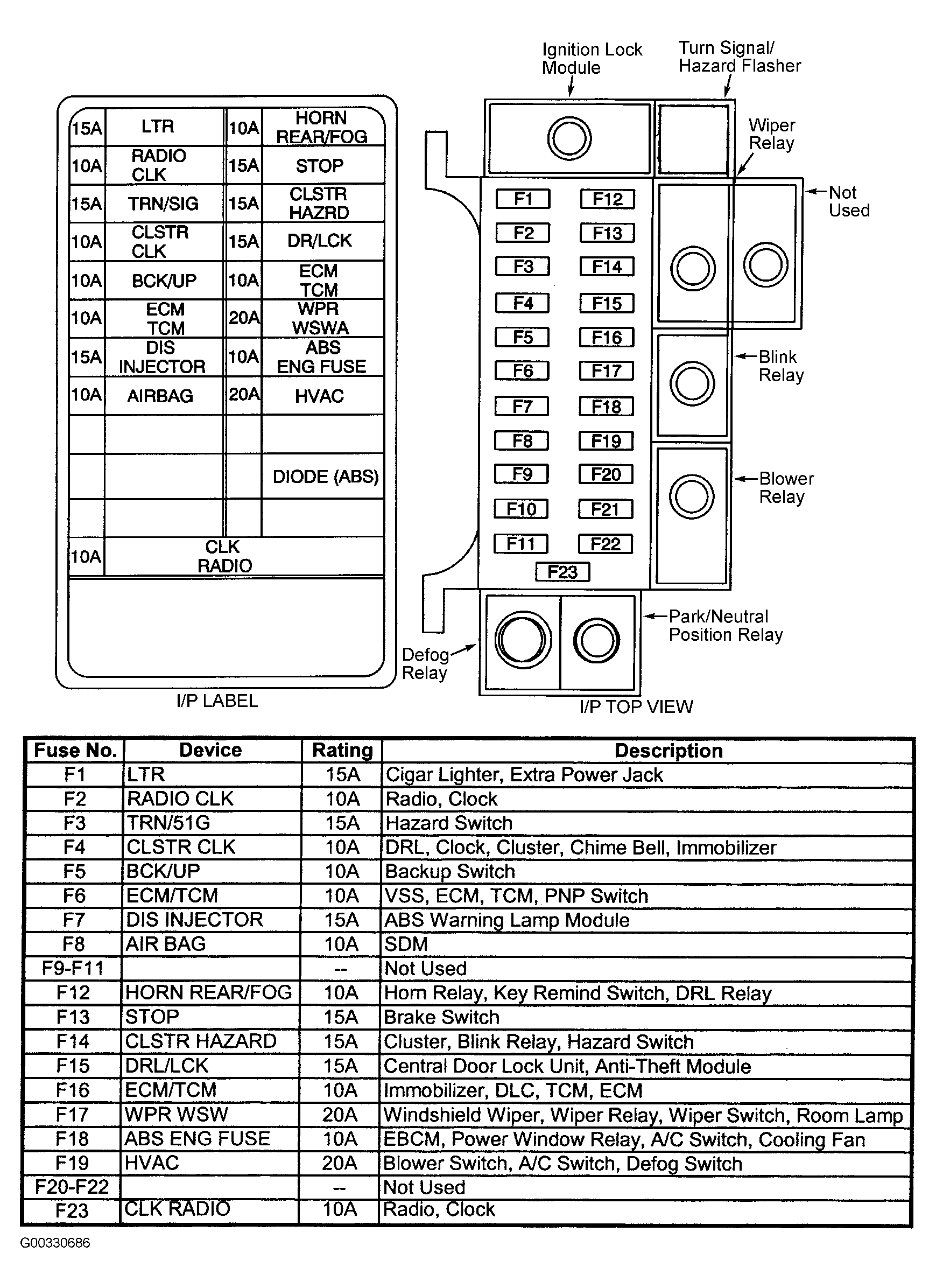

Fig 2: Identifying Instrument Panel Fuse Block Components
G00330686Courtesy of GENERAL MOTORS CORP.
Instrument Panel Fuse Block Relay Identification

Relay Description
Turn Signal Relay
Wiper Relay
Blink Relay
Blower Relay
Park/Neutral Position Relay
Defog Relay
