Power Window Regulator Removal

  1. Disconnect the negative battery cable.
  2. Remove the door glass. Refer to "FRONT DOOR GLASS REMOVAL  or REAR DOOR GLASS REMOVAL ".
  3. Disconnect the electrical connector.
  4. Remove the nuts and the window regulator.

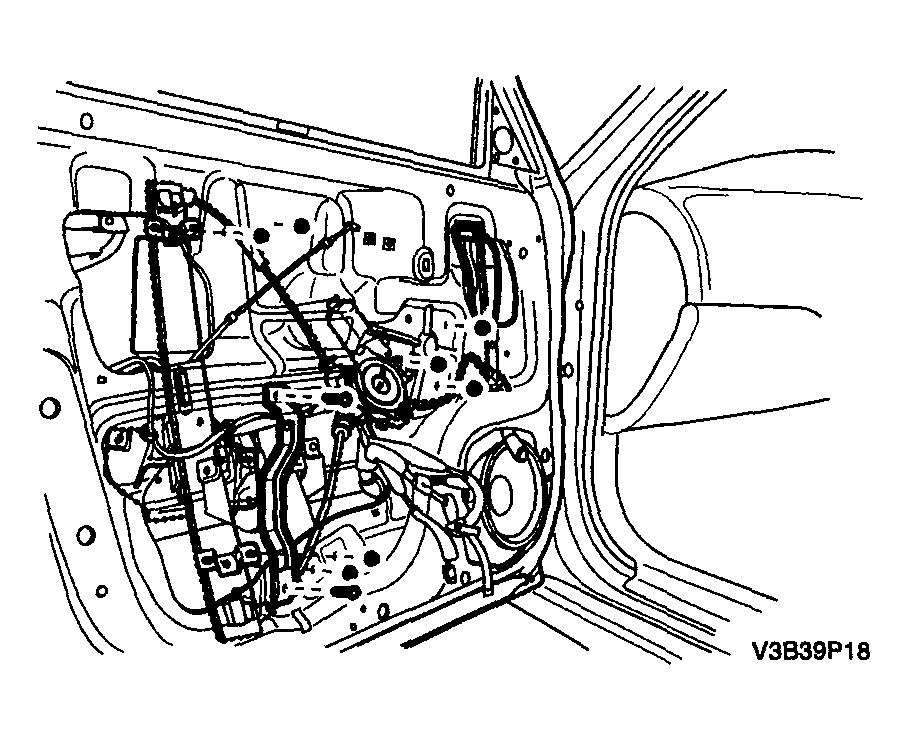

    Fig 1: Removing Nuts And Window Regulator
    G04096216Courtesy of SUZUKI OF AMERICA CORP.
