DTC P0122 Throttle Position (TP) Sensor Low Input: Notes

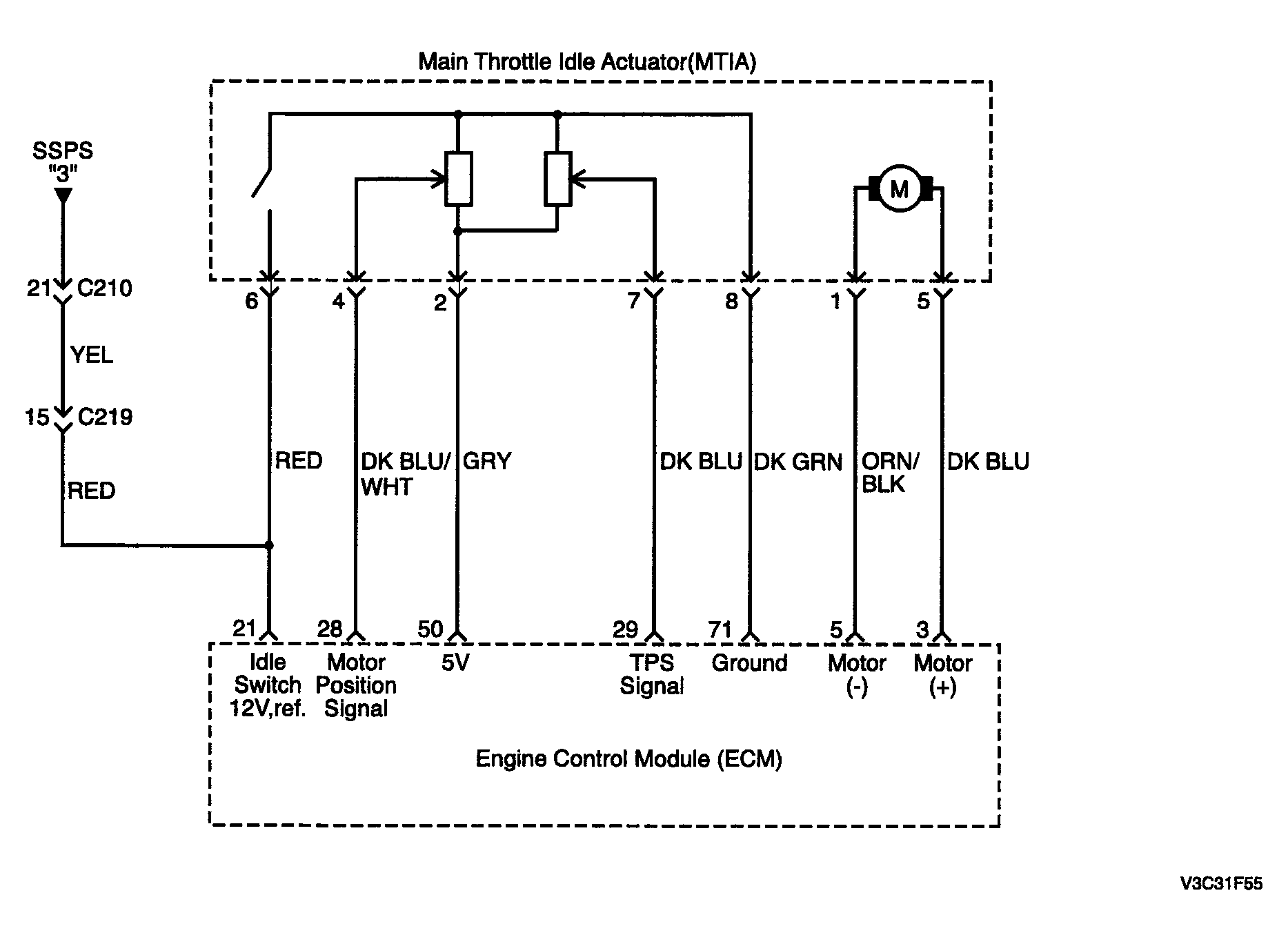

Fig 1: P0122 Throttle Position (TP) Sensor Low Input - Circuit Diagram

G04094434

Courtesy of SUZUKI OF AMERICA CORP.
