DTC P0264 Injector 2 Low Input
›
Notes
DTC P0264 Injector 2 Low Input: Notes

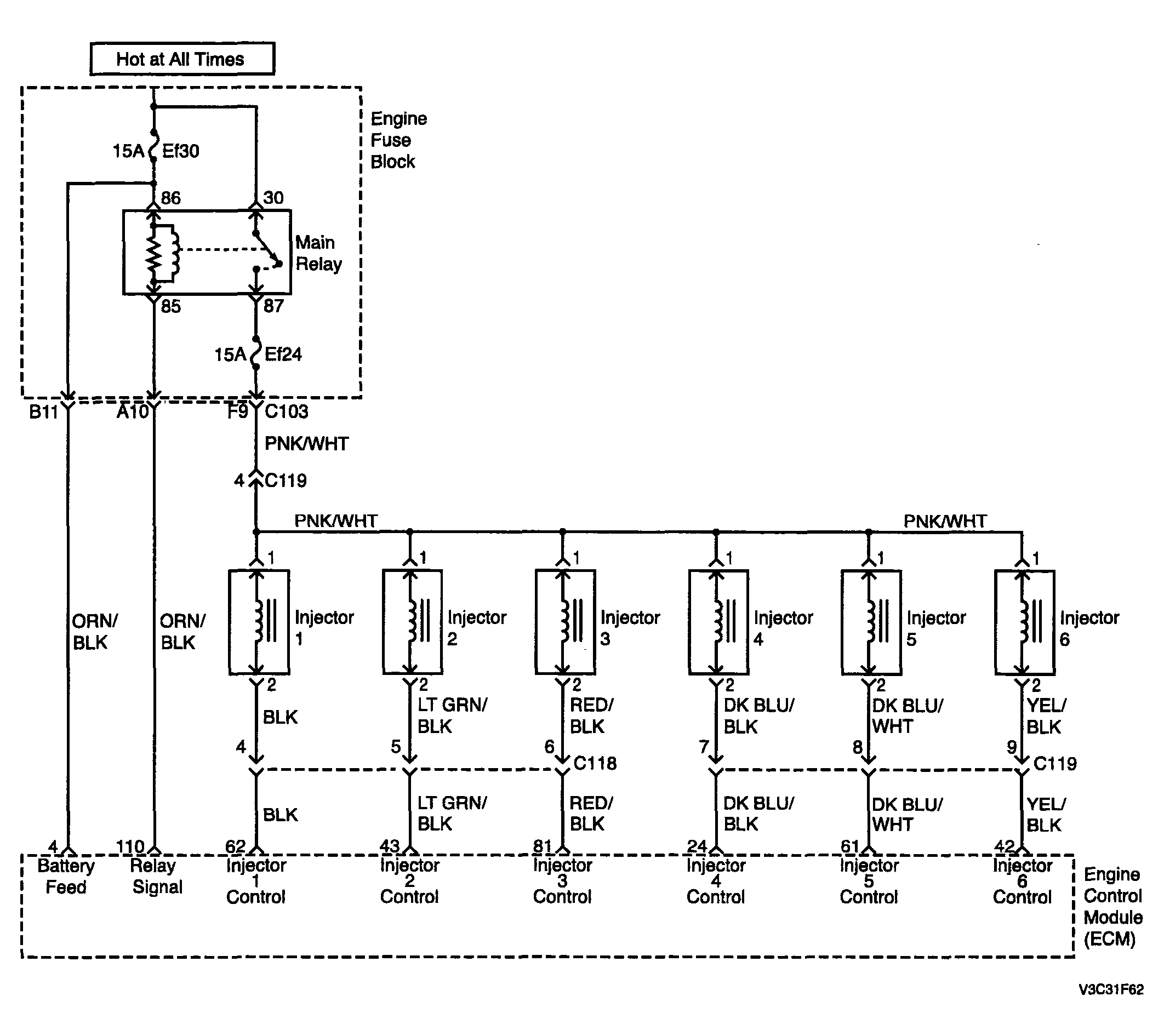

Fig 1: P0264 Injector 2 Low Input - Circuit Diagram
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
