DTC P0270 Injector 4 Low Input
›
Notes
DTC P0270 Injector 4 Low Input: Notes

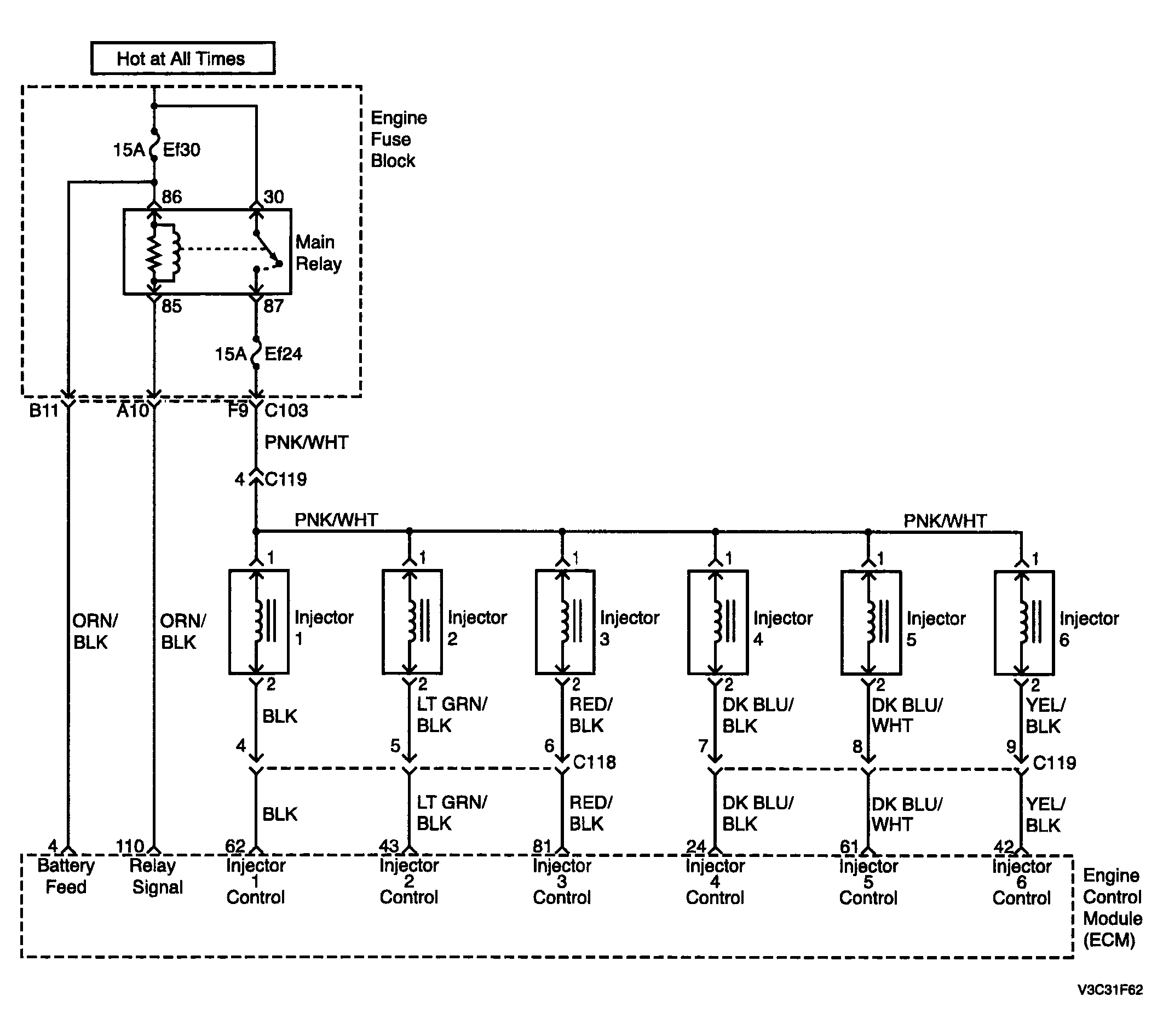

Fig 1: P0270 Injector 4 Low Input - Circuit Diagram
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
