DTC P0271 Injector 4 High Input
›
Notes
DTC P0271 Injector 4 High Input: Notes

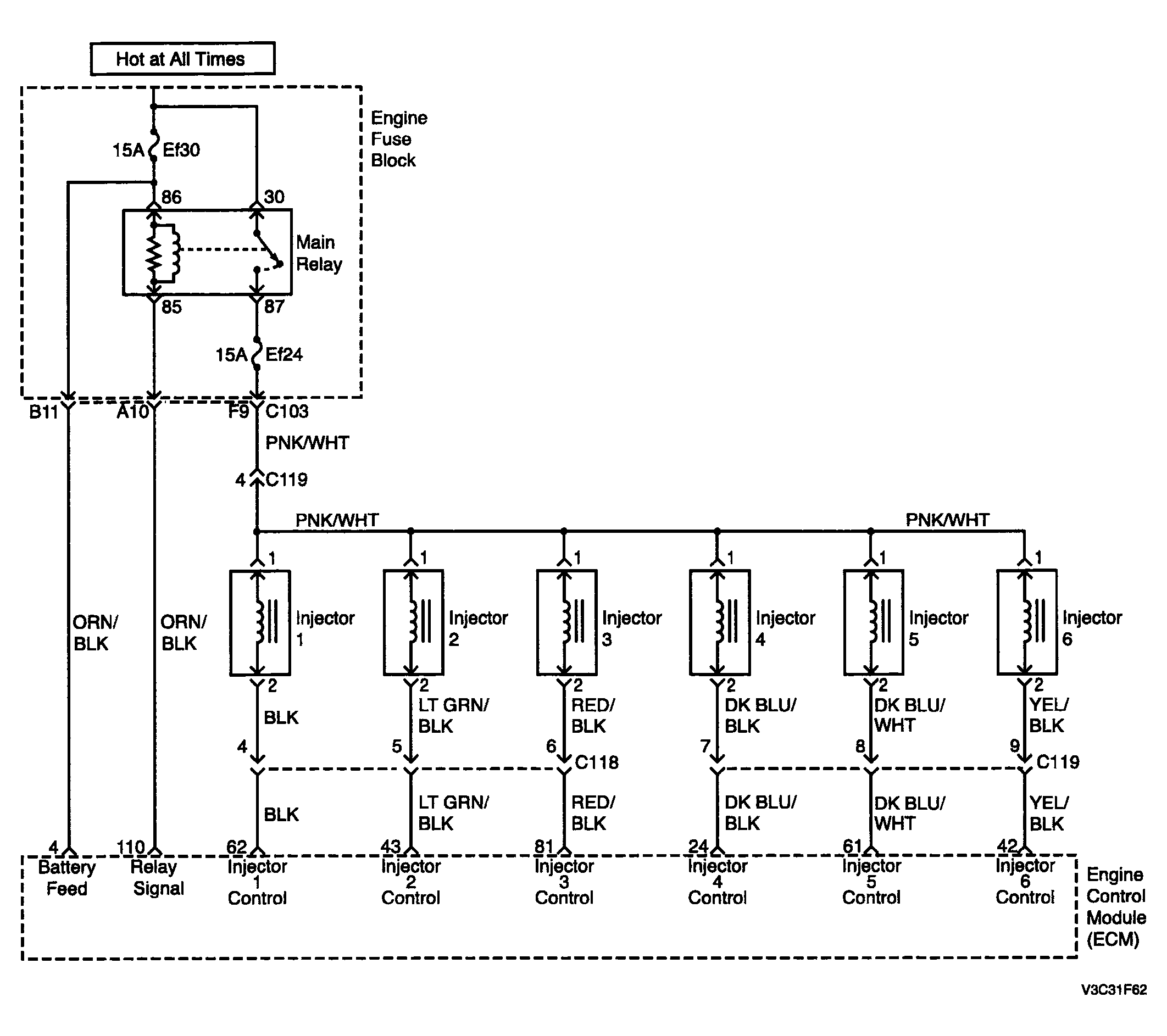

Fig 1: P0271 Injector 4 High Input - Circuit Diagram
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
