DTC P0445 EVAP Purge Control Valve Circuit Shorted
›
Notes
DTC P0445 EVAP Purge Control Valve Circuit Shorted: Notes

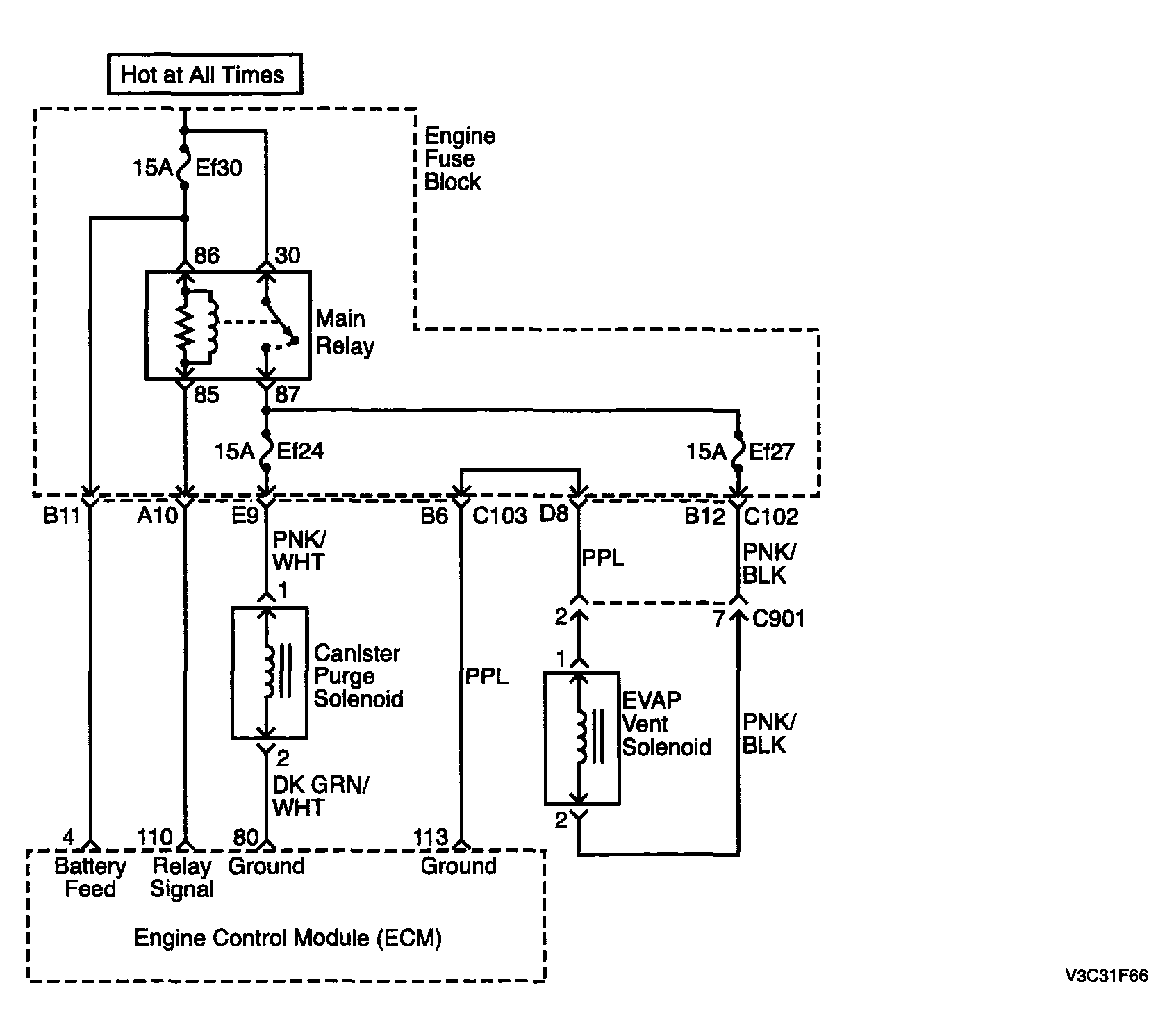

Fig 1: P0445 EVAP Purge Control Valve Circuit Shorted - Circuit Diagram
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
