DTC P0448 EVAP Vent Control Circuit Shorted
›
Notes
DTC P0448 EVAP Vent Control Circuit Shorted: Notes

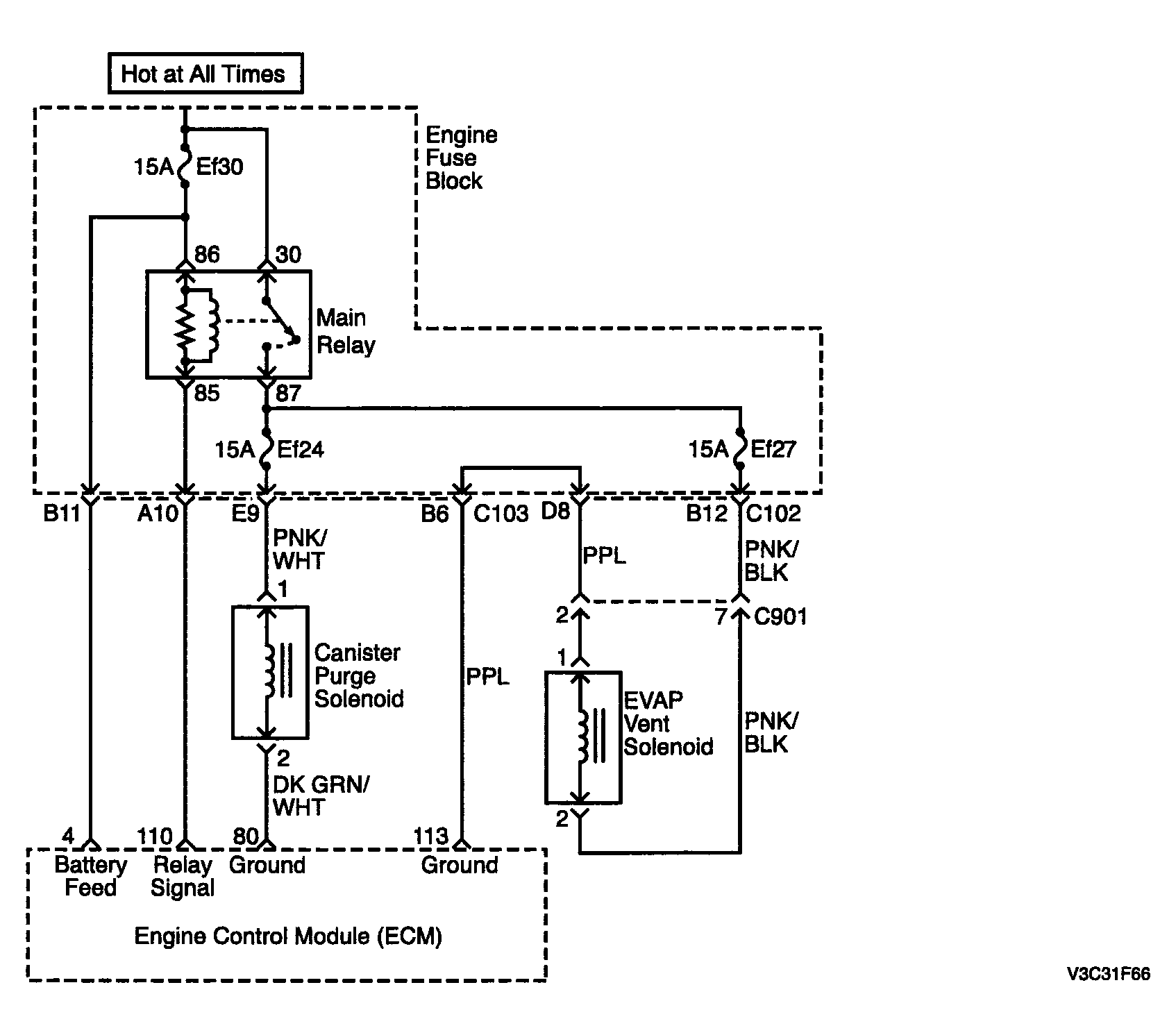

Fig 1: P0448 EVAP Vent Control Circuit Shorted - Circuit Diagram
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
