DTC P0453 Fuel Tank Pressure Sensor High Input
›
Notes
DTC P0453 Fuel Tank Pressure Sensor High Input: Notes

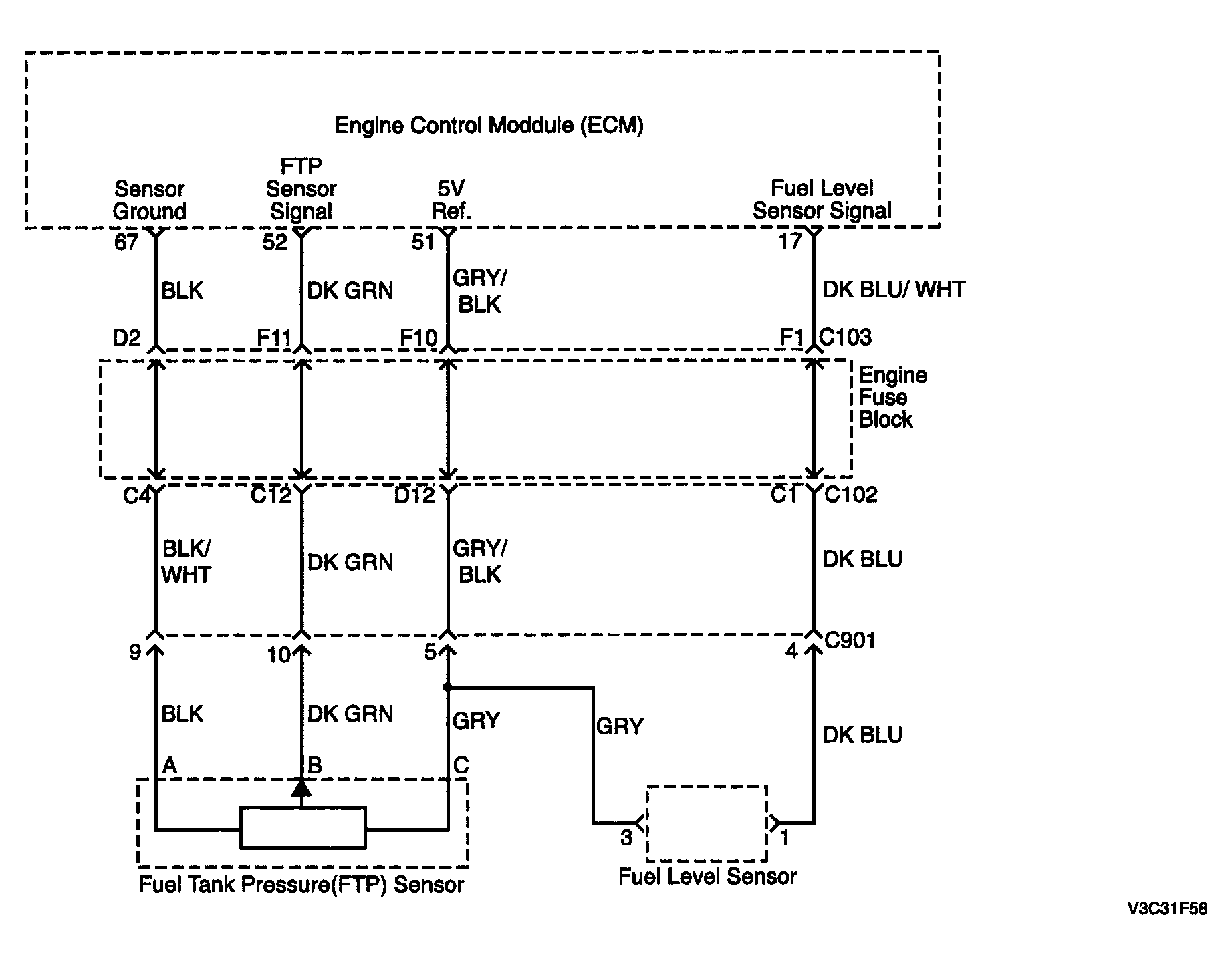

Fig 1: P0453 Fuel Tank Pressure Sensor High Input - Circuit Diagram
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
