DTC P0461 Fuel Level Sensor Circuit Rationality Check
›
Notes
DTC P0461 Fuel Level Sensor Circuit Rationality Check: Notes

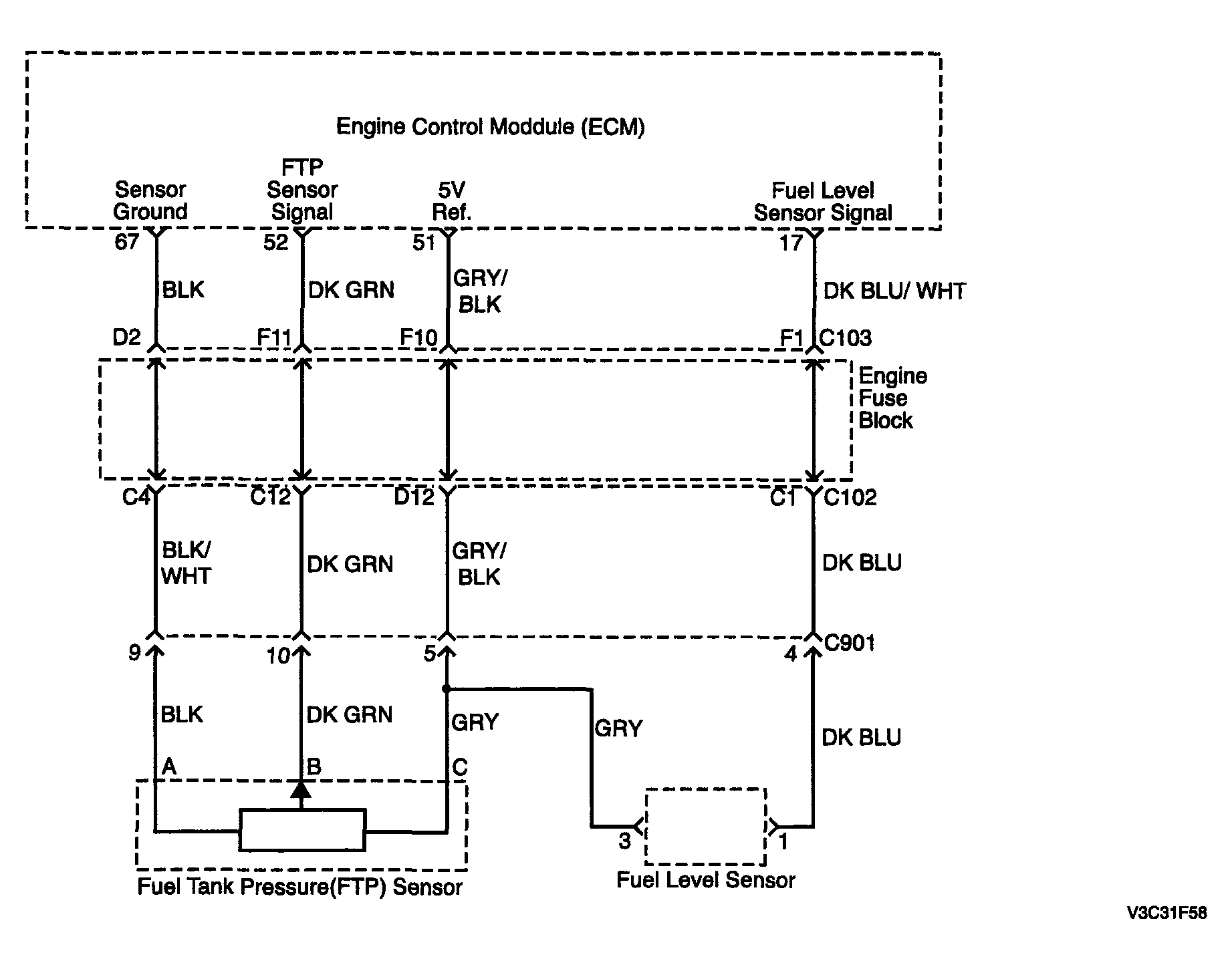

Fig 1: P0461 Fuel Level Sensor Circuit Rationality Check - Circuit Diagram
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
