DTC P0462 Fuel Level Sensor Low Input
›
Notes
DTC P0462 Fuel Level Sensor Low Input: Notes

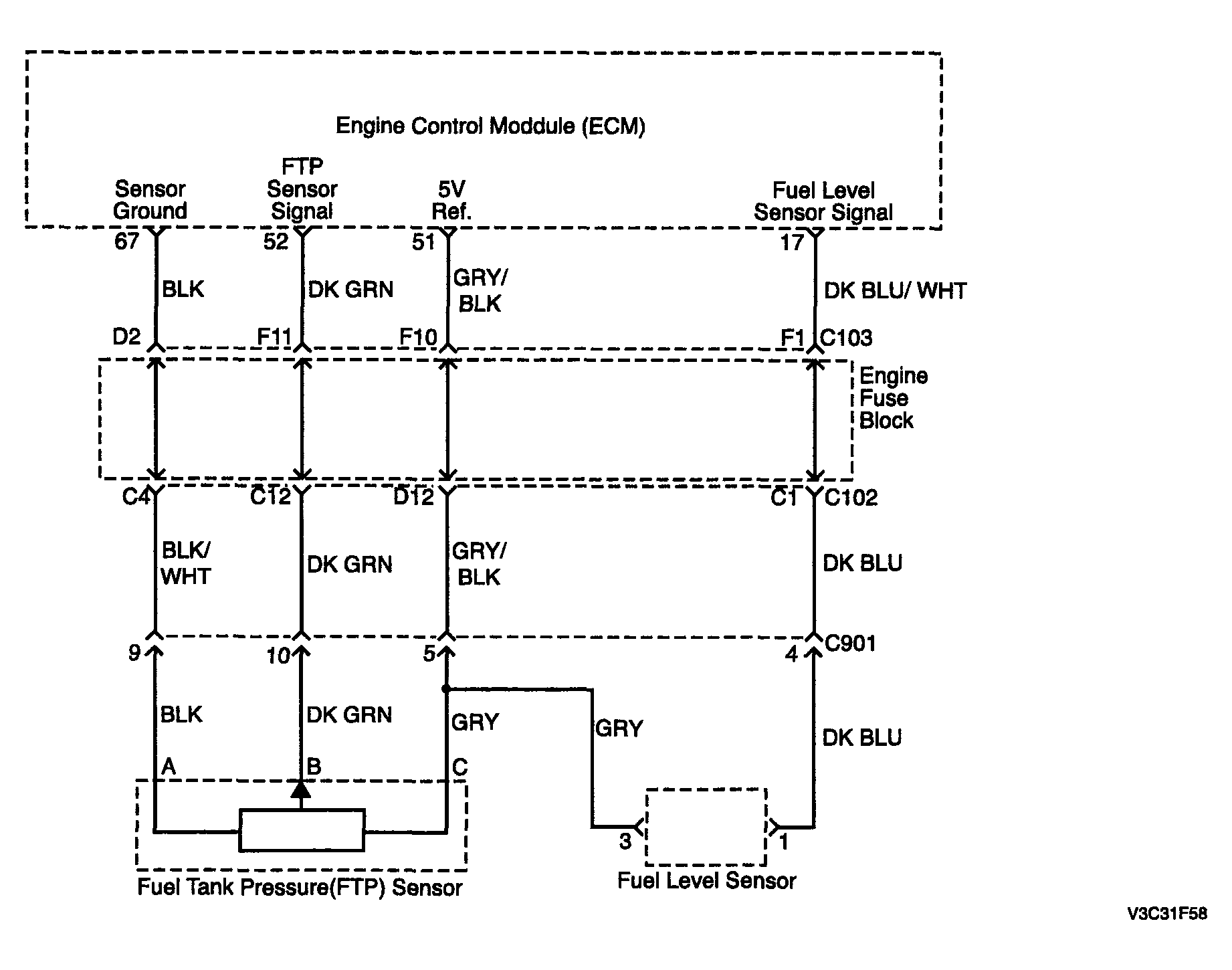

Fig 1: P0462 Fuel Level Sensor Low Input - Circuit Diagram
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
