DTC P0463 Fuel Level Sensor High Input: Notes

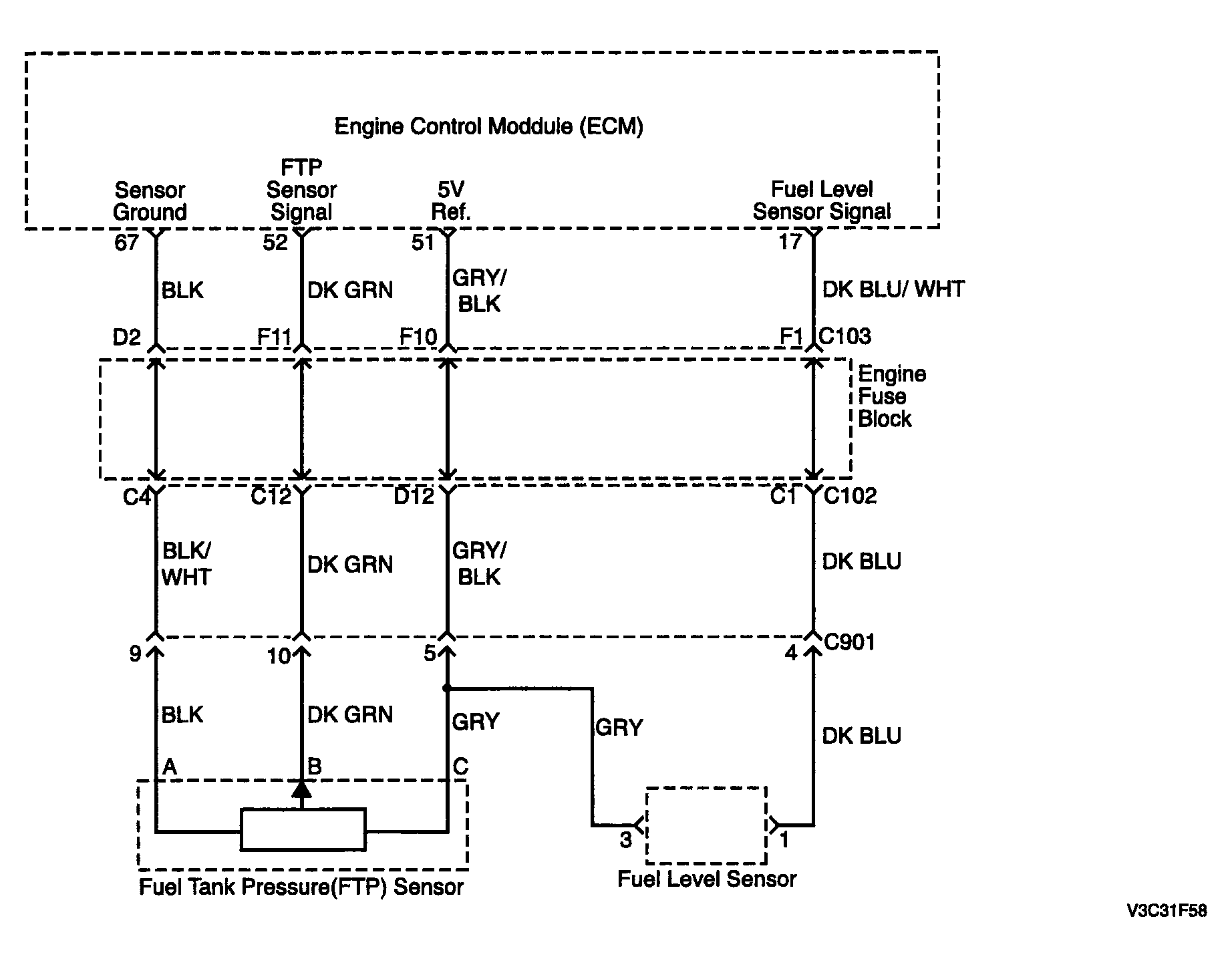

Fig 1: P0463 Fuel Level Sensor High Input - Circuit Diagram
G04094500Courtesy of SUZUKI OF AMERICA CORP.
