DTC P0646 A/C Compressor Relay Low Input: Notes

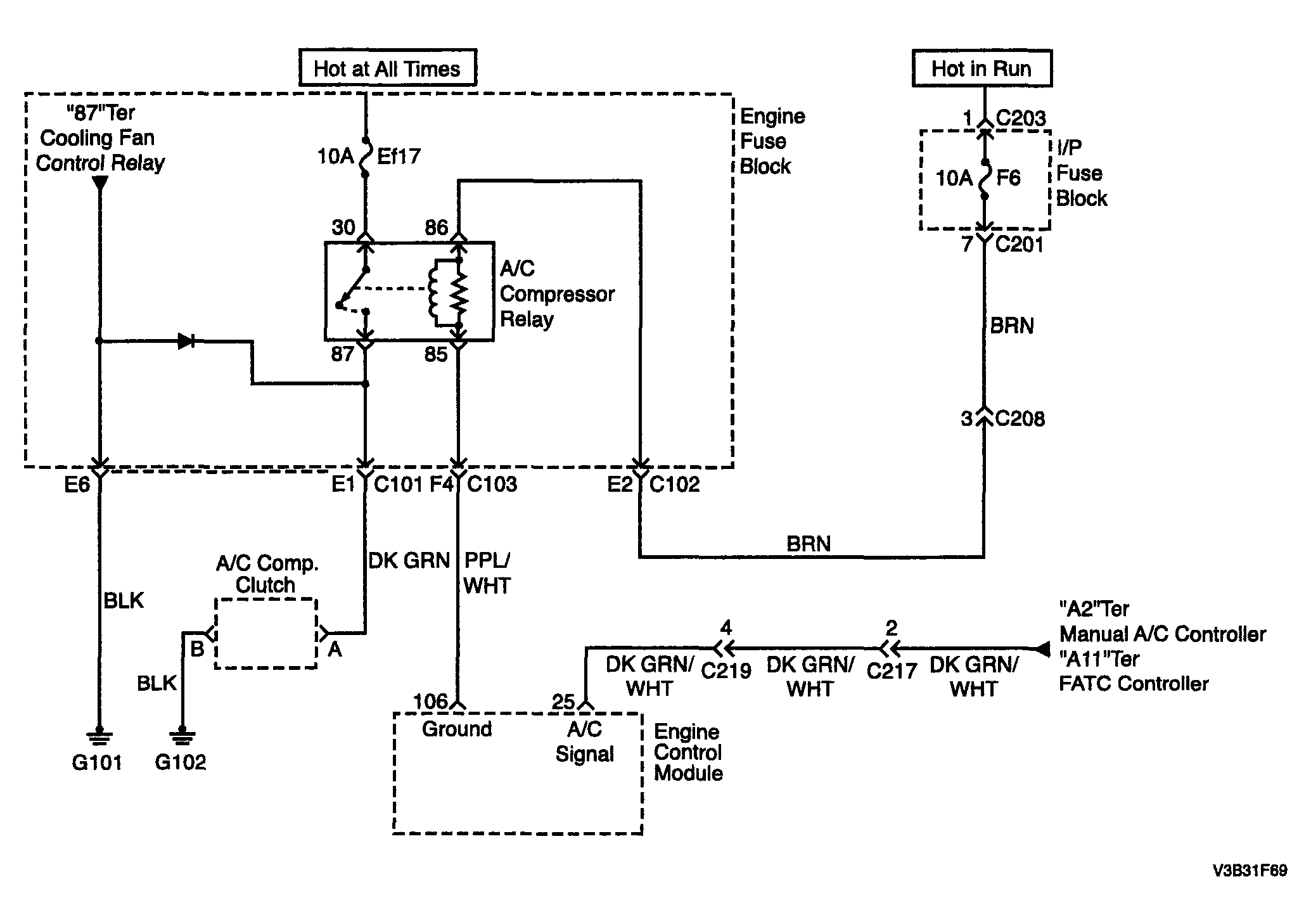

Fig 1: P0646 A/C Compressor Relay Low Input - Circuit Diagram
G04094509Courtesy of SUZUKI OF AMERICA CORP.
