DTC P0654 Engine Speed Signal Output Circuit
›
Notes
DTC P0654 Engine Speed Signal Output Circuit: Notes

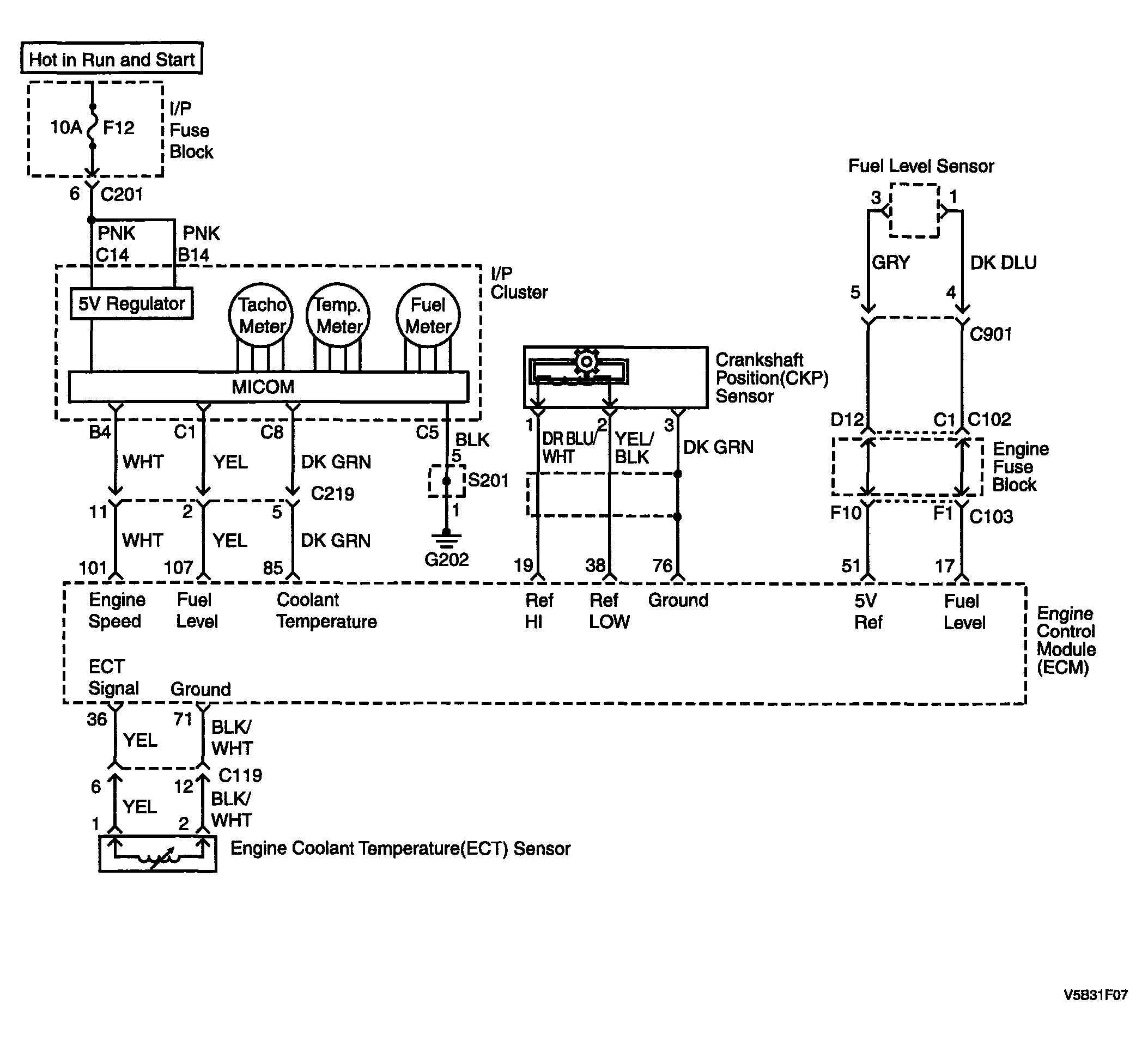

Fig 1: P0654 Engine Speed Signal Output Circuit - Circuit Diagram
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
