DTC P1504 Vehicle Speed Sensor CAN Malfunction: Notes

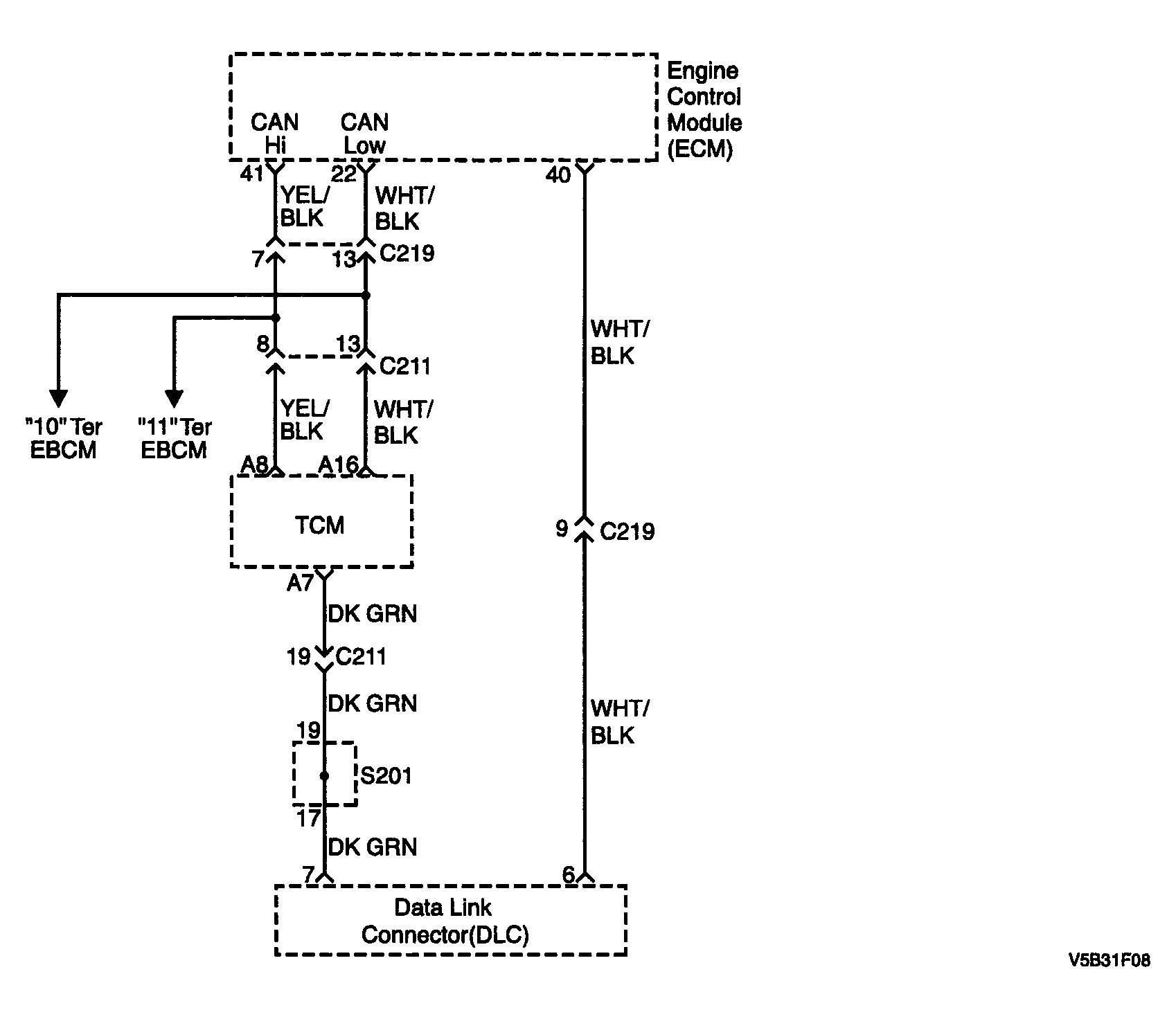

Fig 1: P1504 Vehicle Speed Sensor Can Malfunction - Circuit Diagram
G04094519Courtesy of SUZUKI OF AMERICA CORP.
