DTC U0100 CAN Communication Error (ECM Cannot Emit Message): Notes

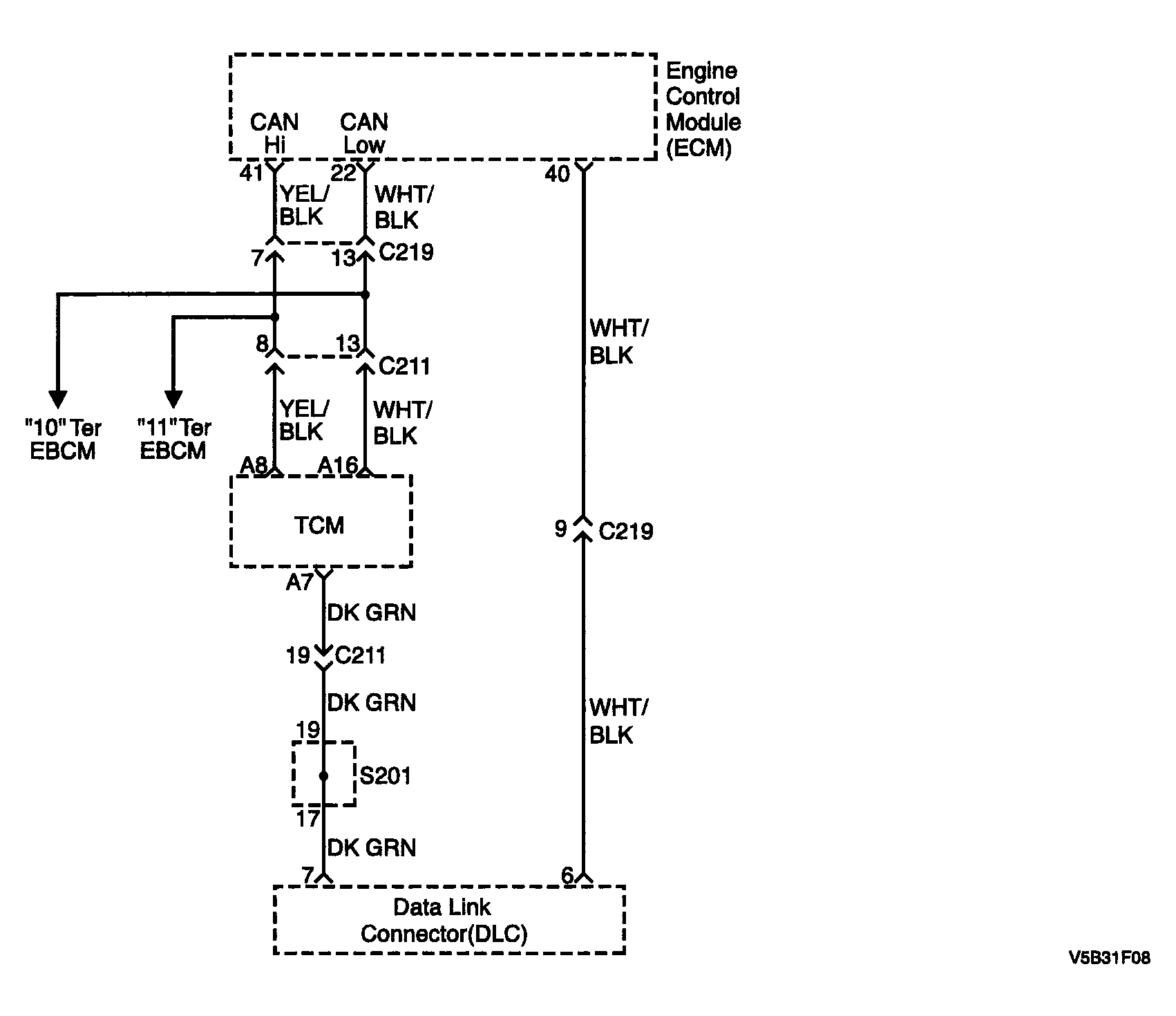

Fig 1: U0100 CAN Communication Error (ECM Cannot Emit Message) - Circuit Diagram
G04094533Courtesy of SUZUKI OF AMERICA CORP.
