DTC U0121 CAN Communication Error (No Message from ABS Module)
›
Notes
DTC U0121 CAN Communication Error (No Message from ABS Module): Notes

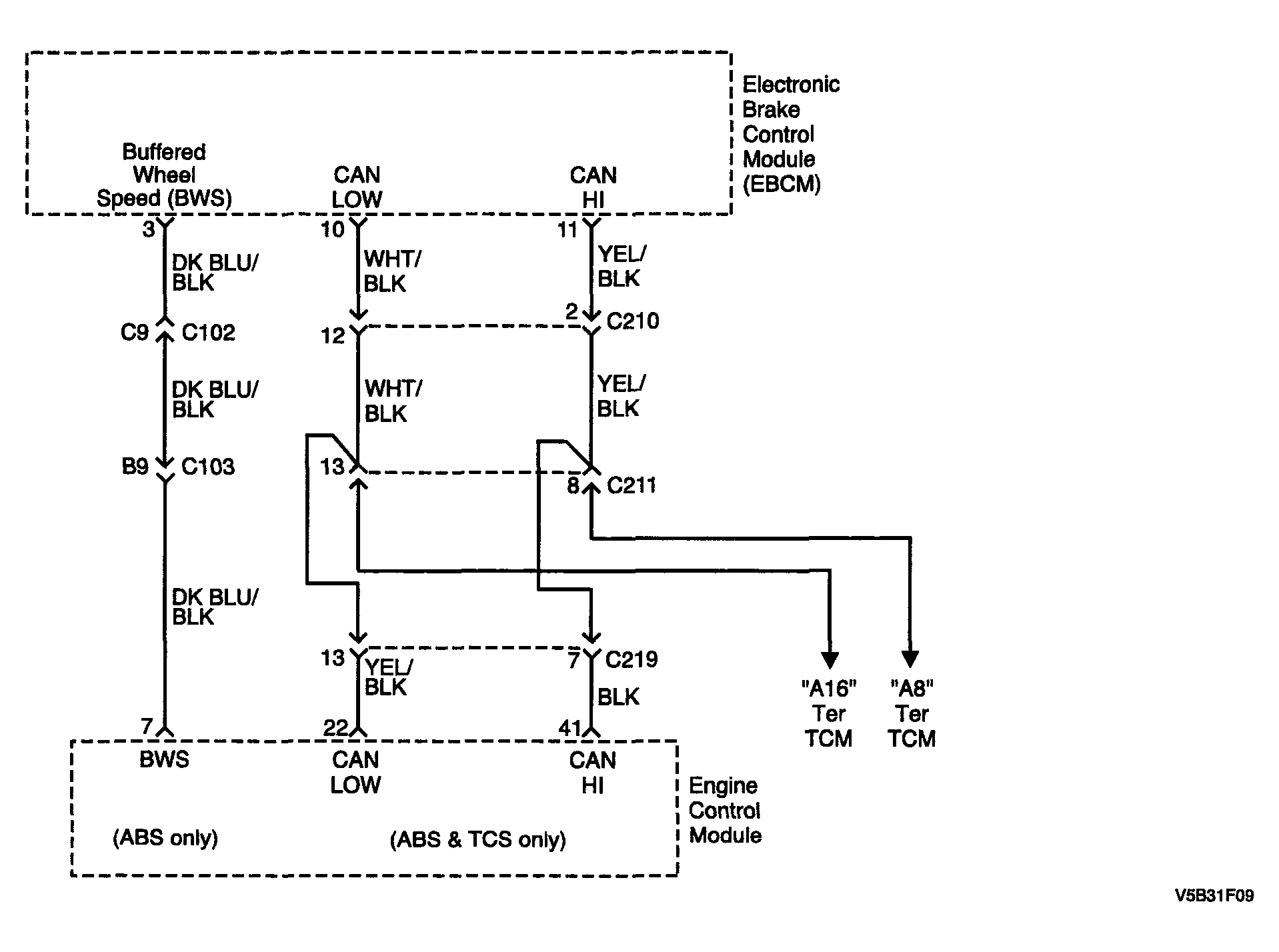

Fig 1: U0121 CAN Communication Error (No Message From ABS Module) - Circuit Diagram
Courtesy of SUZUKI OF AMERICA CORP.
