Data Link Connector Diagnosis: Notes

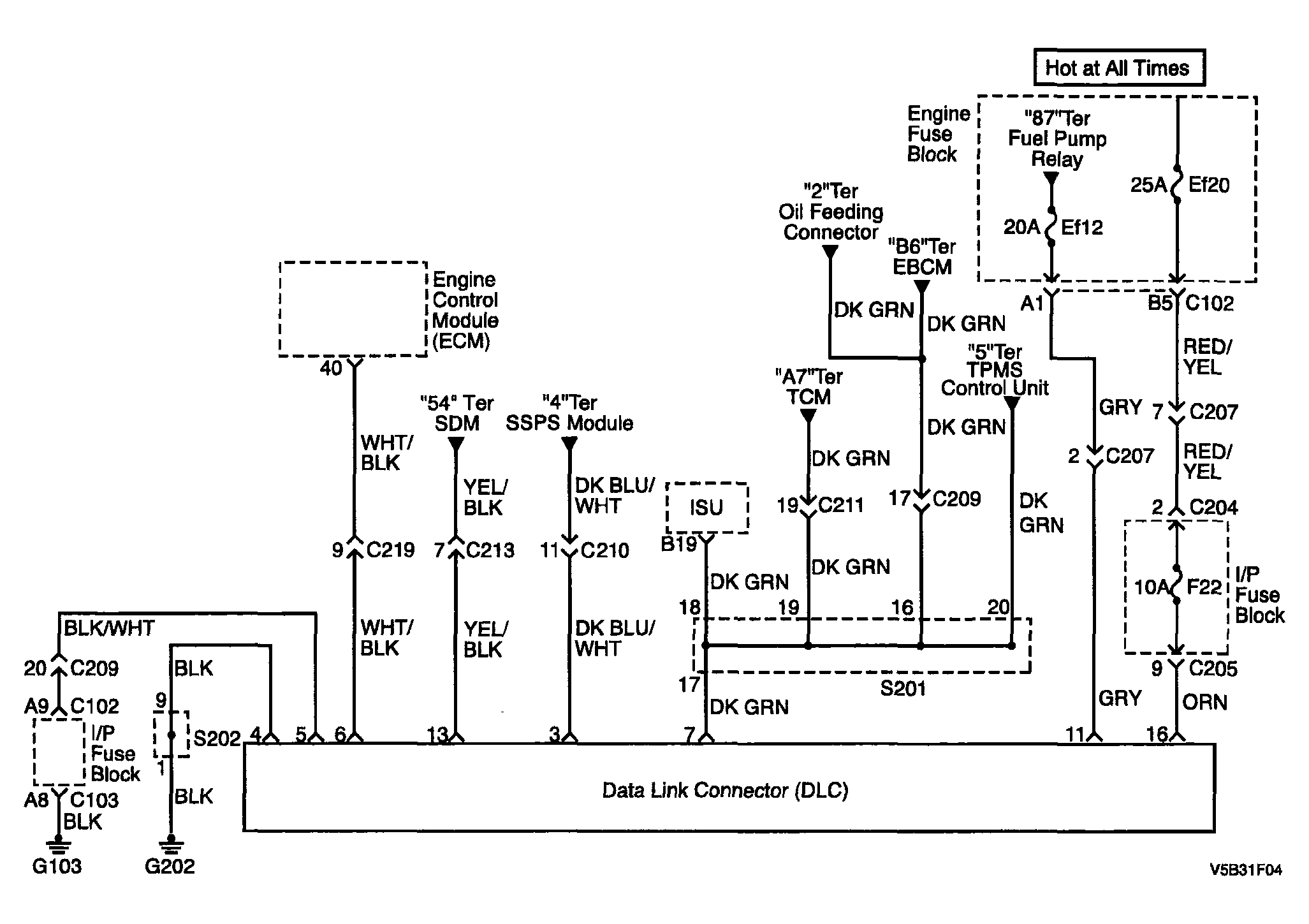

Fig 1: Data Link Connector Diagnosis - Circuit Diagram
G04094409Courtesy of SUZUKI OF AMERICA CORP.
