Engine General Information And Diagnosis
›
Diagnostic Information and Procedures
›
Fuel Pump Relay Circuit Check
›
Notes
Fuel Pump Relay Circuit Check: Notes

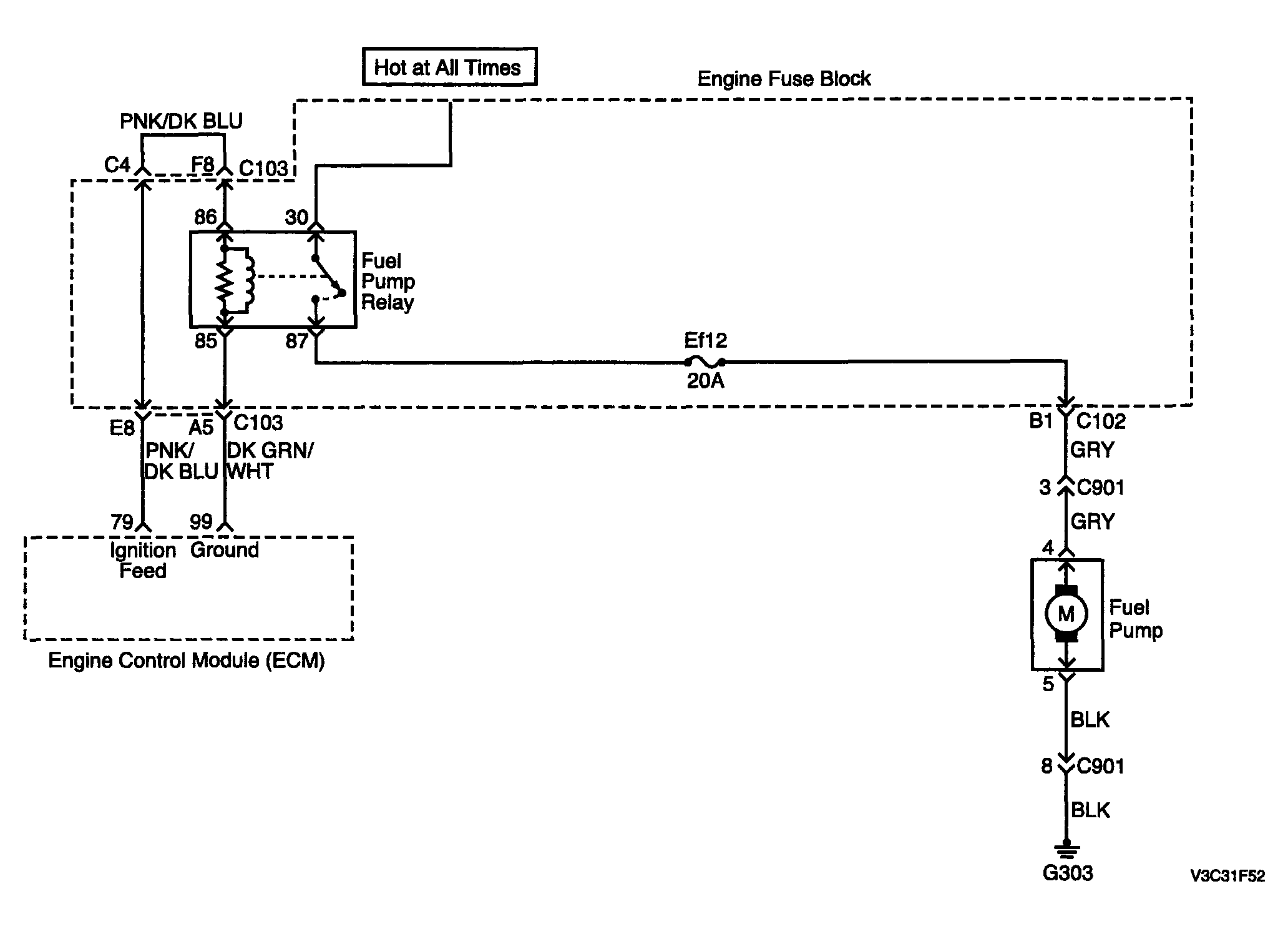

Fig 1: Fuel Pump Relay Circuit Check - Circuit Diagram
