Idle Air Control System Check: Notes

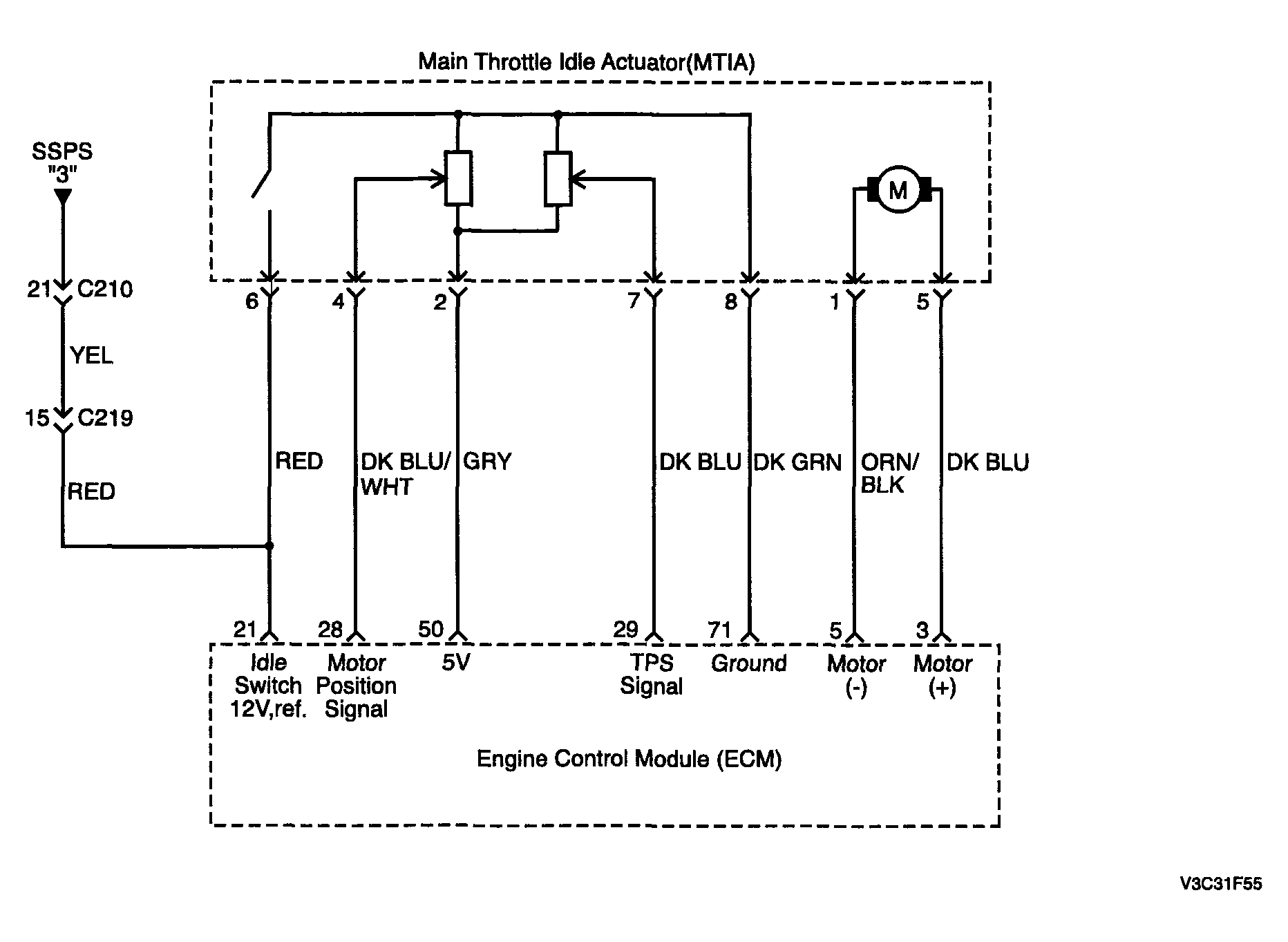

Fig 1: Idle Air Control System Check - Circuit Diagram
G04094539Courtesy of SUZUKI OF AMERICA CORP.
