Manifold Absolute Pressure Check: Notes

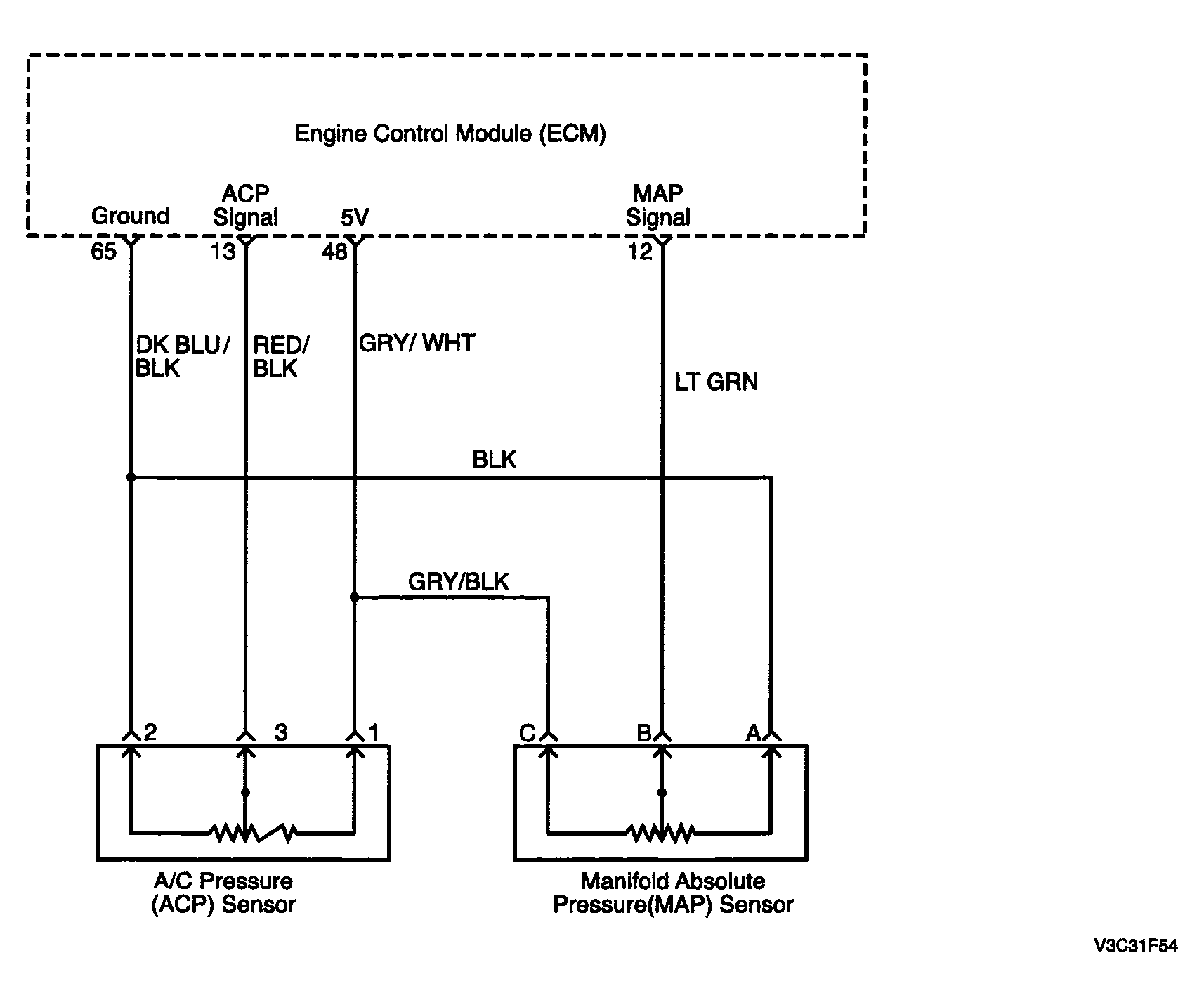

Fig 1: Manifold Absolute Pressure Check - Circuit Diagram
G04094538Courtesy of SUZUKI OF AMERICA CORP.
