Manifold Absolute Pressure (MAP) Sensor Installation

Installation should follow the removal procedure in the reverse order.
Install the MAP sensor.
Tighten

Tighten the manifold absolute pressure (MAP) sensor to 6 ~ 10 N.m (53 ~ 89 lb-in).

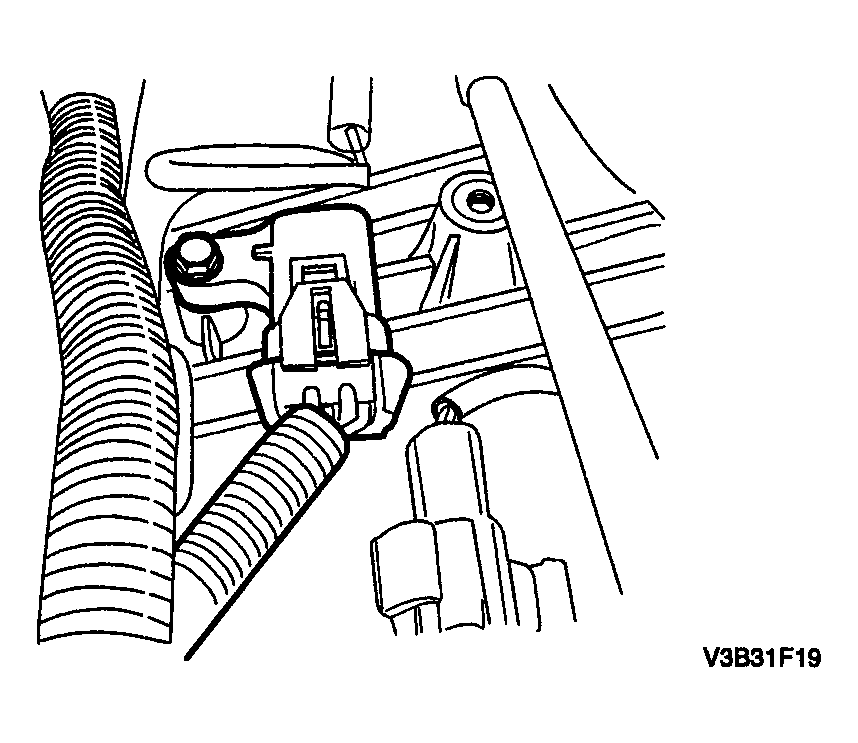

Fig 1: Installing MAP Sensor
Courtesy of SUZUKI OF AMERICA CORP.
