Engine Control Module (ECM) Removal

  1. Remove the battery.
  2. Remove the ECM bracket nuts.

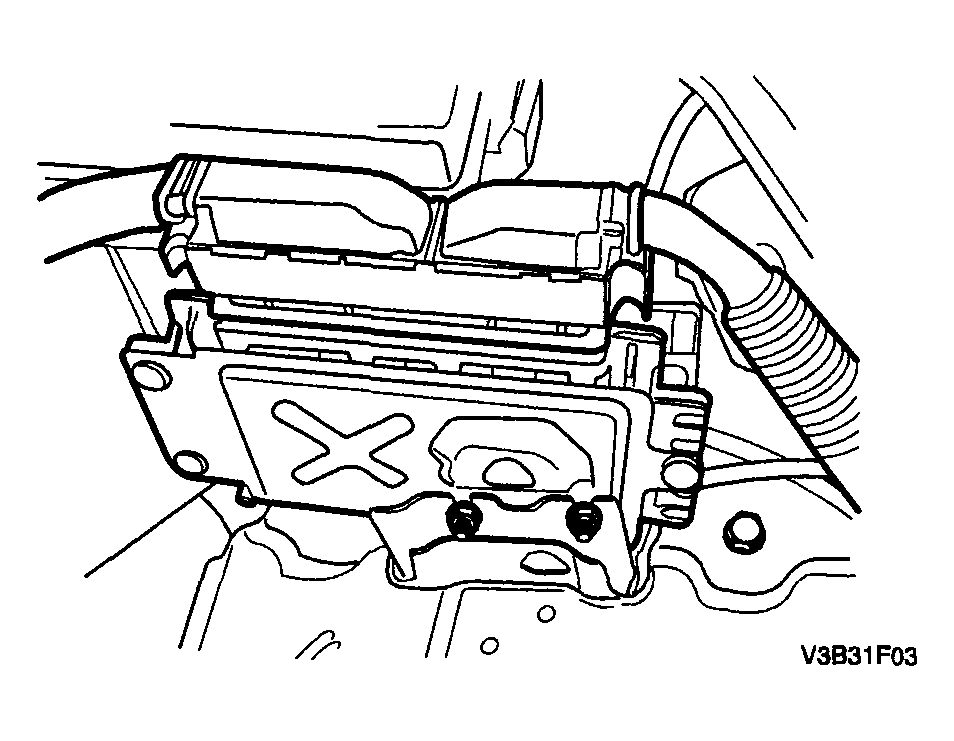

    Fig 1: Removing ECM Bracket Nuts
    G04094563Courtesy of SUZUKI OF AMERICA CORP.
  3. Disconnect the ECM connector.
  4. Remove the ECM retaining nuts and the ECM.

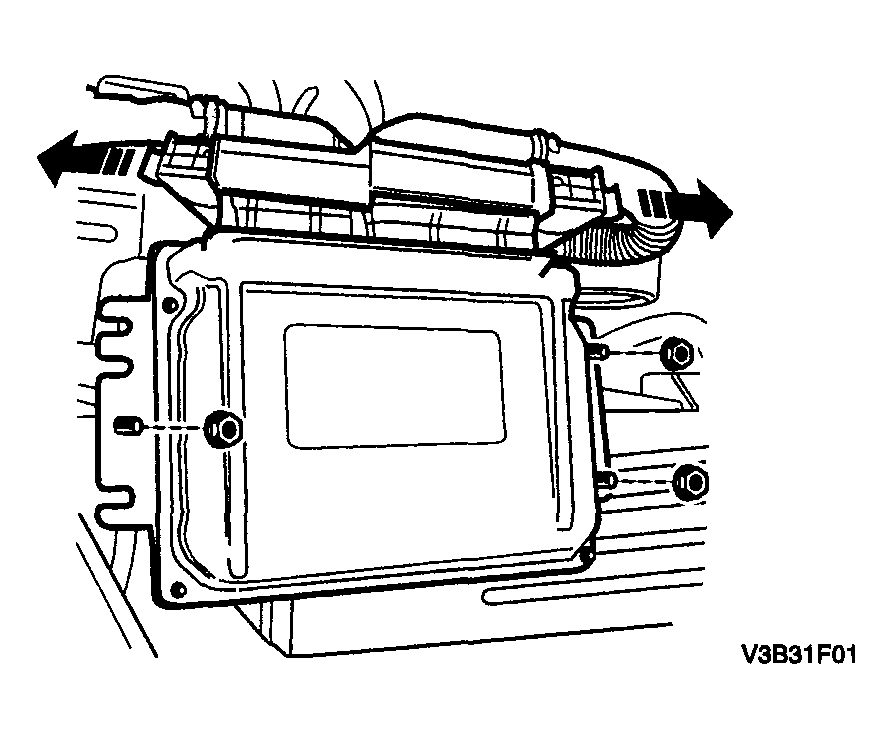

    Fig 2: Removing ECM
    G04094564Courtesy of SUZUKI OF AMERICA CORP.
