Fuse Chart

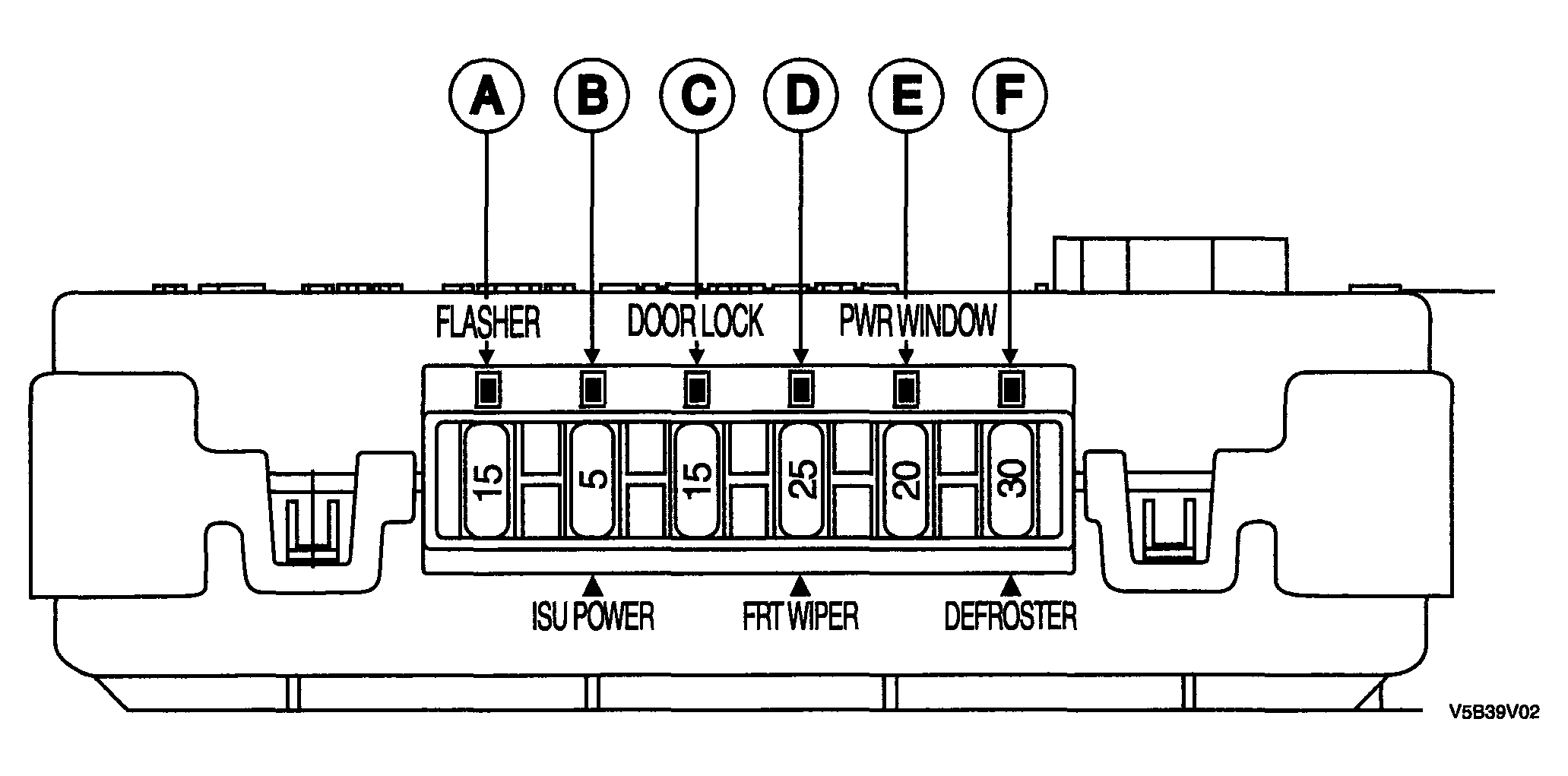

Fig 1: Fuse Identification Chart

Courtesy of SUZUKI OF AMERICA CORP.

FUSE CHART DESCRIPTION

PIN	Description	Volts
A	Flasher Unit	15A
B	ISU BAT	5A
C	Door Lock	15A
D	Windshield Wiper	25 A
E	Power Window	20 A
F	Outside Rearview Mirror/Rear Window Defogger Output	30 A
