DTC P0123 Throttle Position (TP) Sensor High Input
›
Notes
DTC P0123 Throttle Position (TP) Sensor High Input: Notes

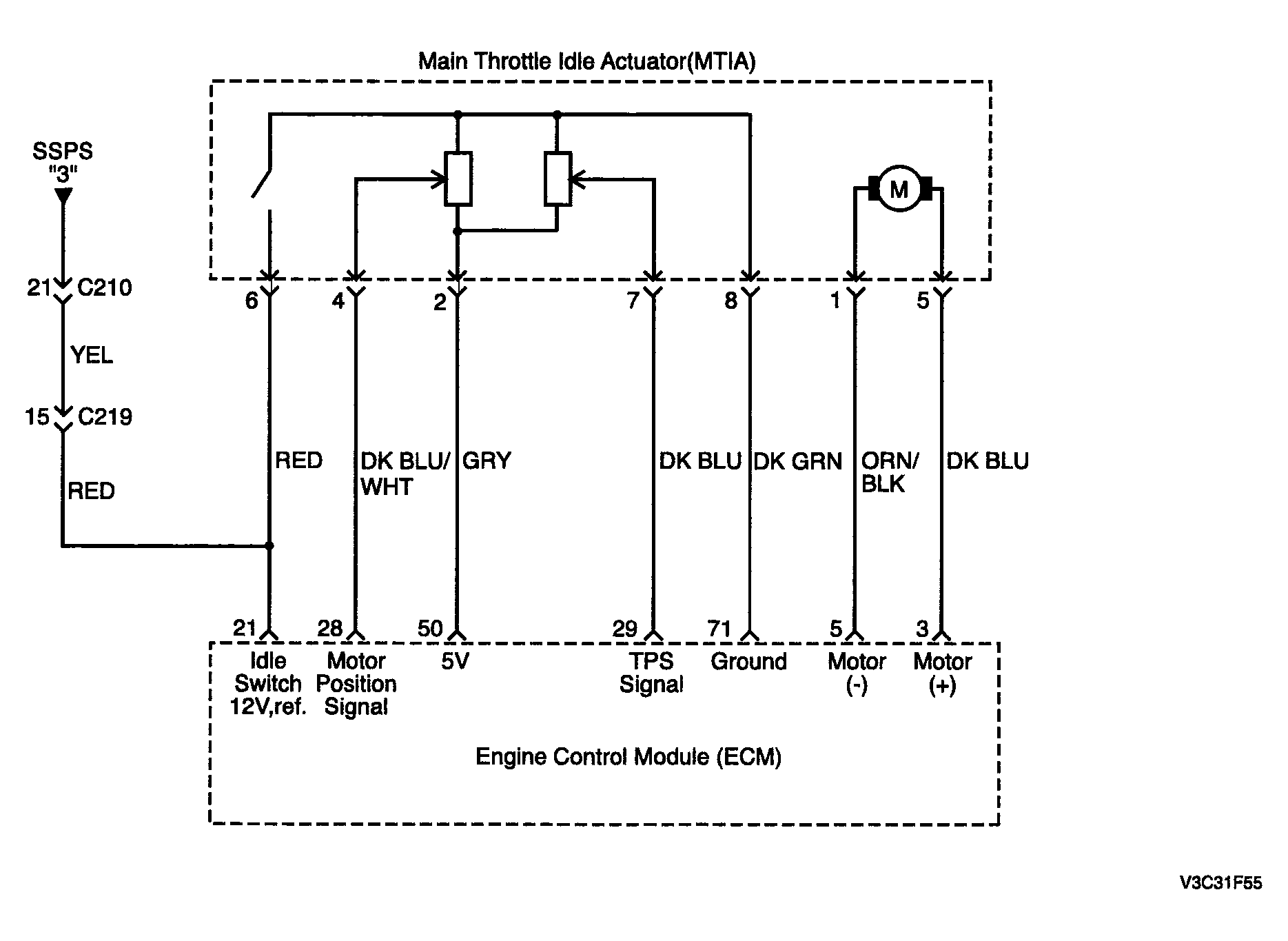

Fig 1: P0123 Throttle Position (TP) Sensor High Input - Circuit Diagram
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
