DTC P0265 Injector 2 High Input
›
Notes
DTC P0265 Injector 2 High Input: Notes

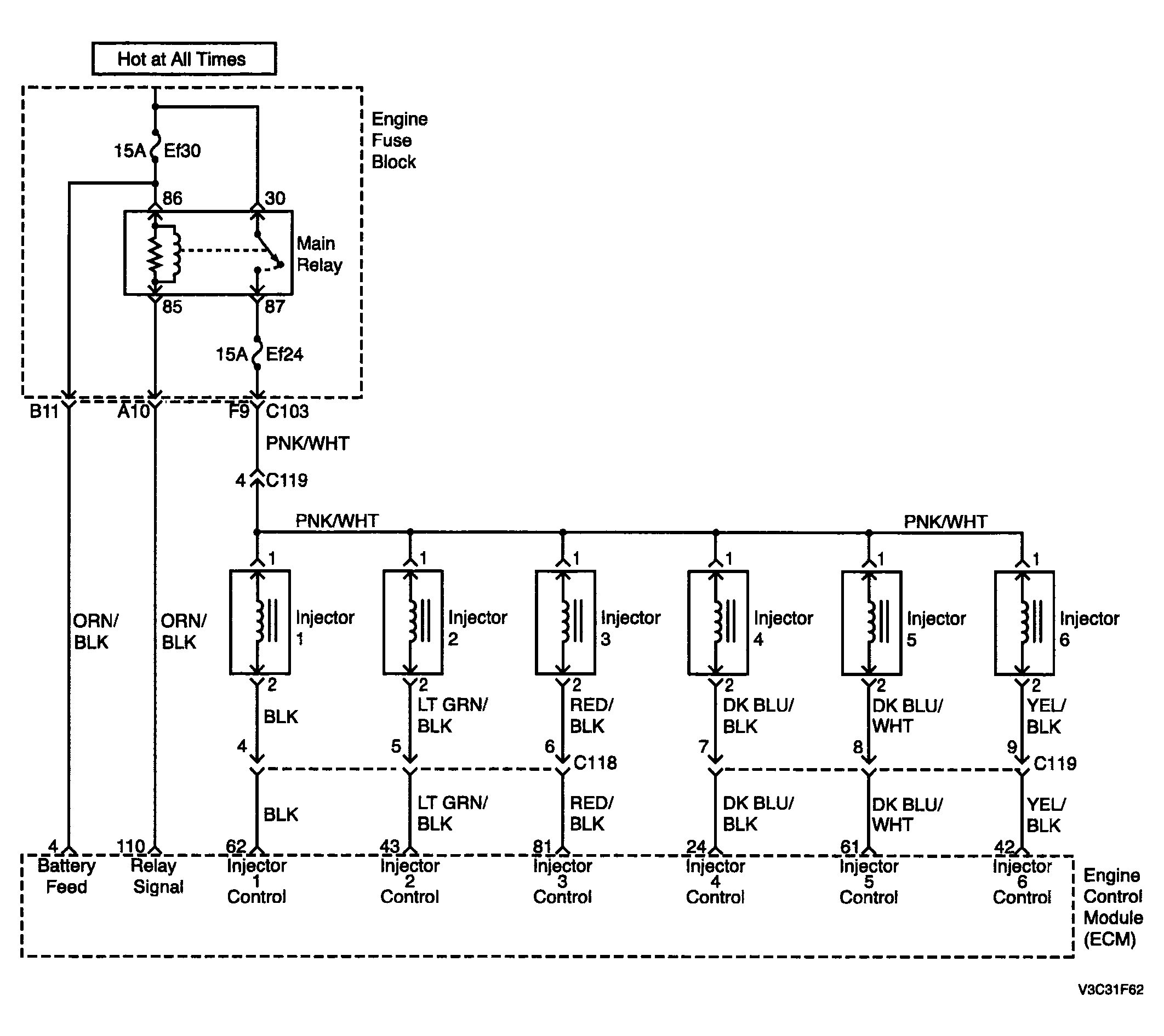

Fig 1: P0265 Injector 2 High Input - Circuit Diagram
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
