DTC P0532 A/C Pressure Sensor Circuit Low Input
›
Notes
DTC P0532 A/C Pressure Sensor Circuit Low Input: Notes

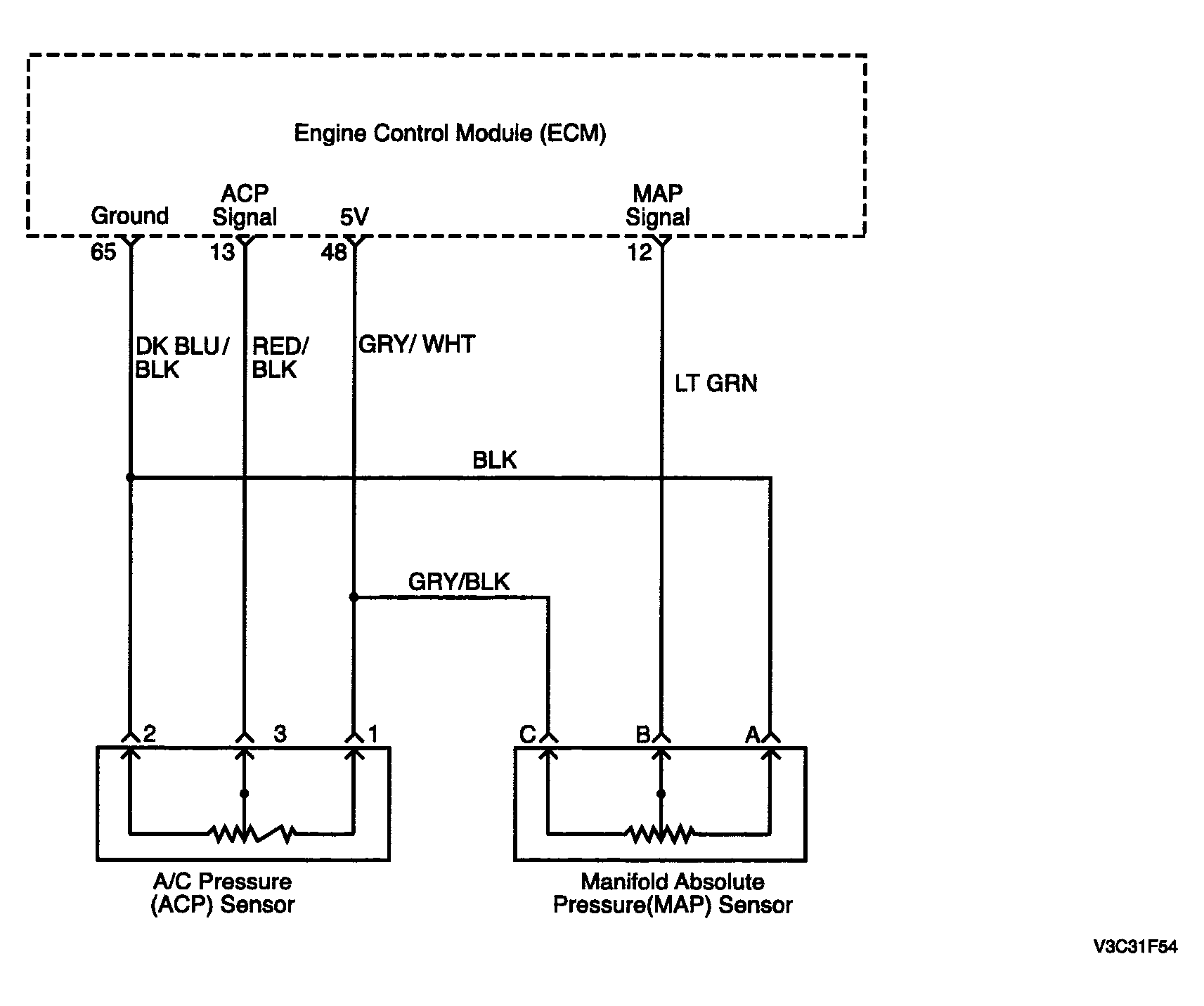

Fig 1: P0532 A/C Pressure Sensor Circuit Low Input - Circuit Diagram
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
