Main Relay Circuit Check: Notes

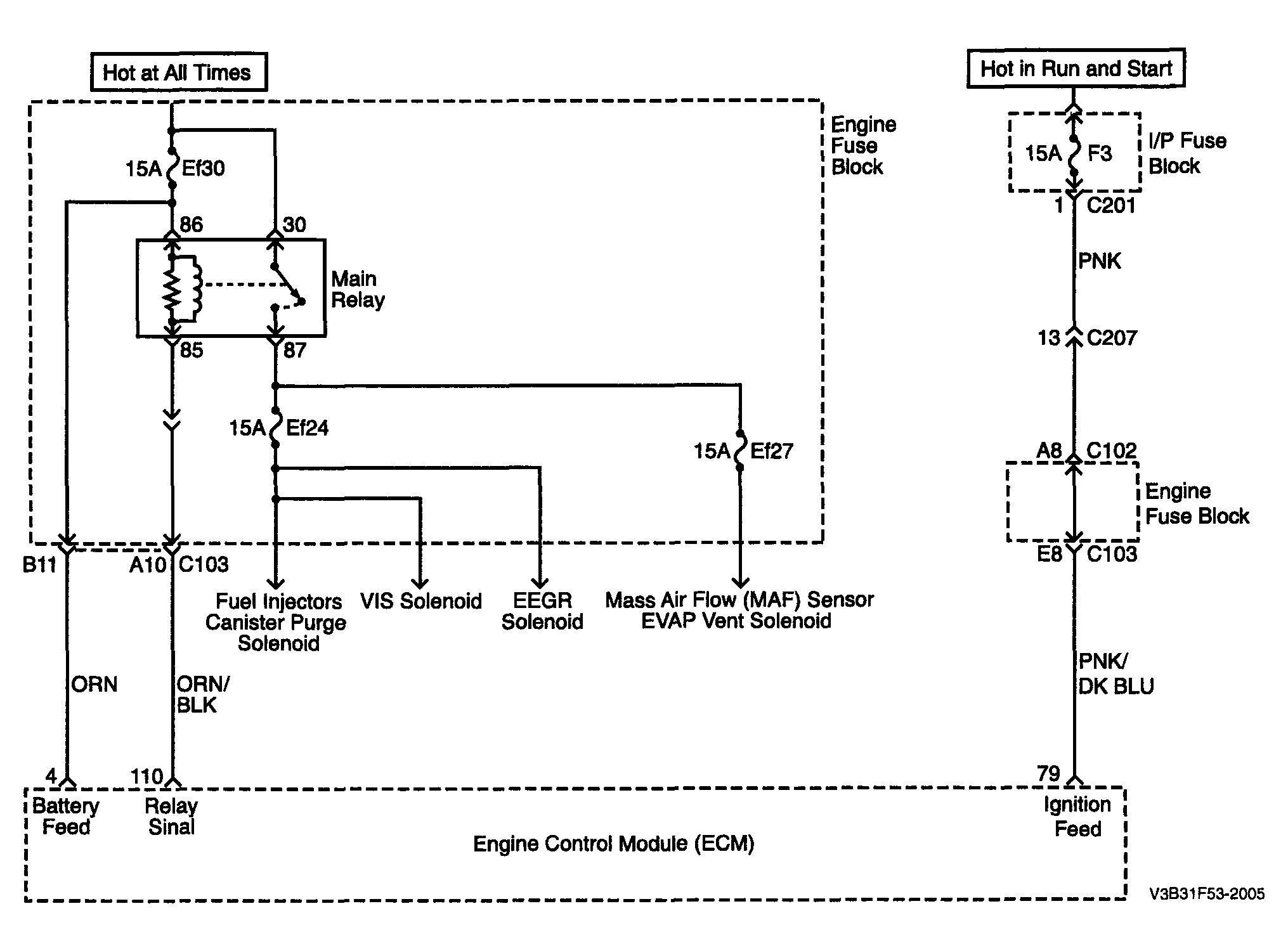

Fig 1: Main Relay Circuit Check - Circuit Diagram
G04094537Courtesy of SUZUKI OF AMERICA CORP.
