Power Window Main Switch Inspection
Power Window Main Switch Inspection
Inspect switch continuity between terminals.

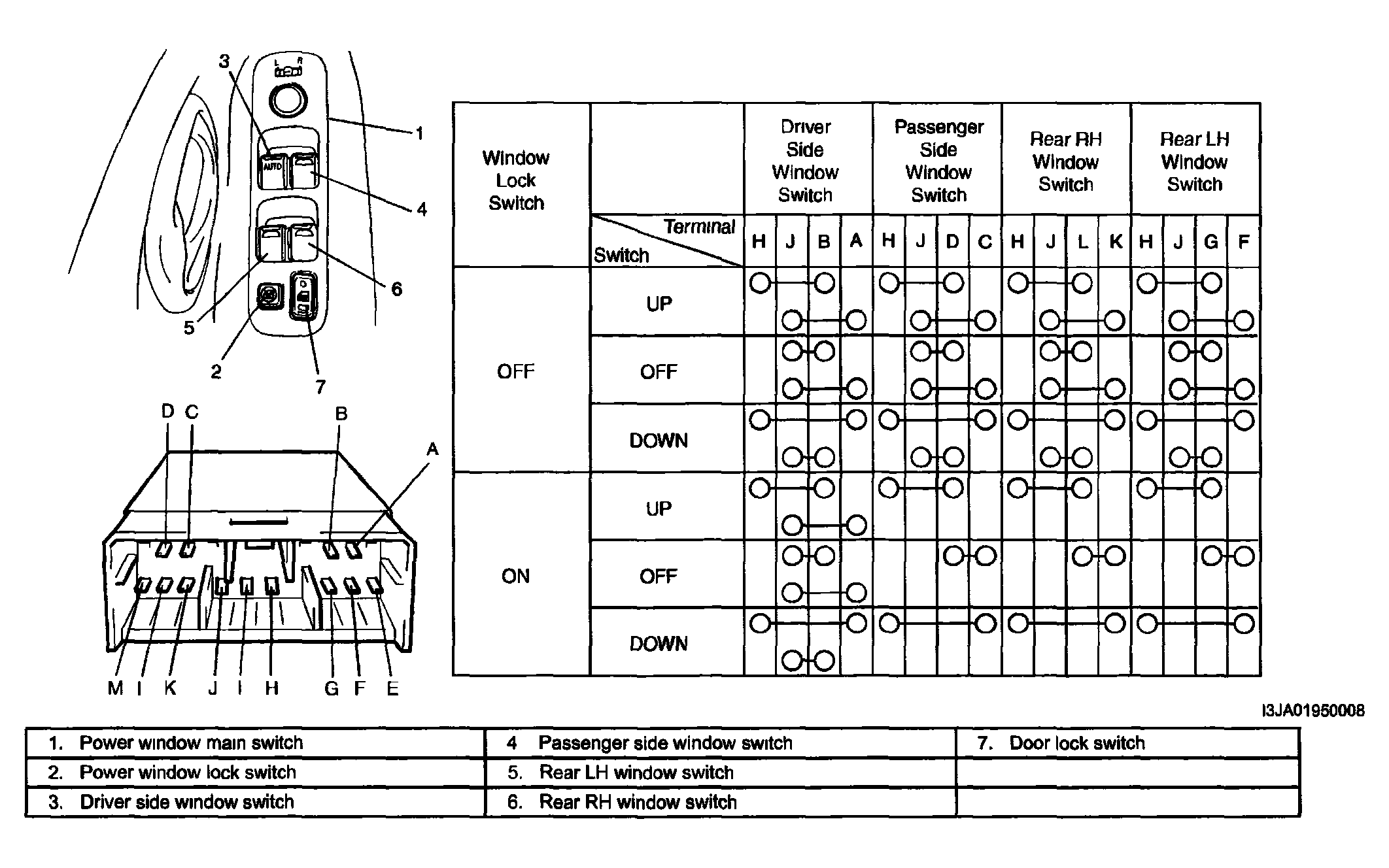

Fig 1: Inspecting Switch Continuity Between Terminals
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
